External Rings (Circlips/Snap Rings) for Shafts: The Essential Fastener for Industry
Introduction: Secure Your Assemblies with Reliable External Rings
In the world of mechanical engineering and manufacturing, axial retention is a critical requirement. Components like bearings, gears, and pulleys must be securely positioned on shafts to ensure optimal performance and safety. This is where External Rings—also commonly known as External Circlips or External Snap Rings—play an indispensable role.
At IndiaFastners, we understand the demand for high-quality, precision-engineered fasteners. As a leading manufacturer and supplier in India, we provide a comprehensive range of external rings built to meet stringent international standards like DIN 471 and IS 3075.
What is an External Ring? (Circlip or Snap Ring)
An external ring is a specialized fastener, typically a semi-flexible metal ring with open ends, designed to be installed into a machined groove on the outside diameter of a shaft.
Key Function: When installed in the shaft’s groove, the exposed portion of the ring acts as a shoulder. This shoulder effectively locks an assembly component (like a bearing or gear) into a precise axial position, preventing it from moving or sliding off the shaft during operation.
Nomenclature Clarity: While the term “External Ring” is a general descriptor, in industry, you’ll often encounter:

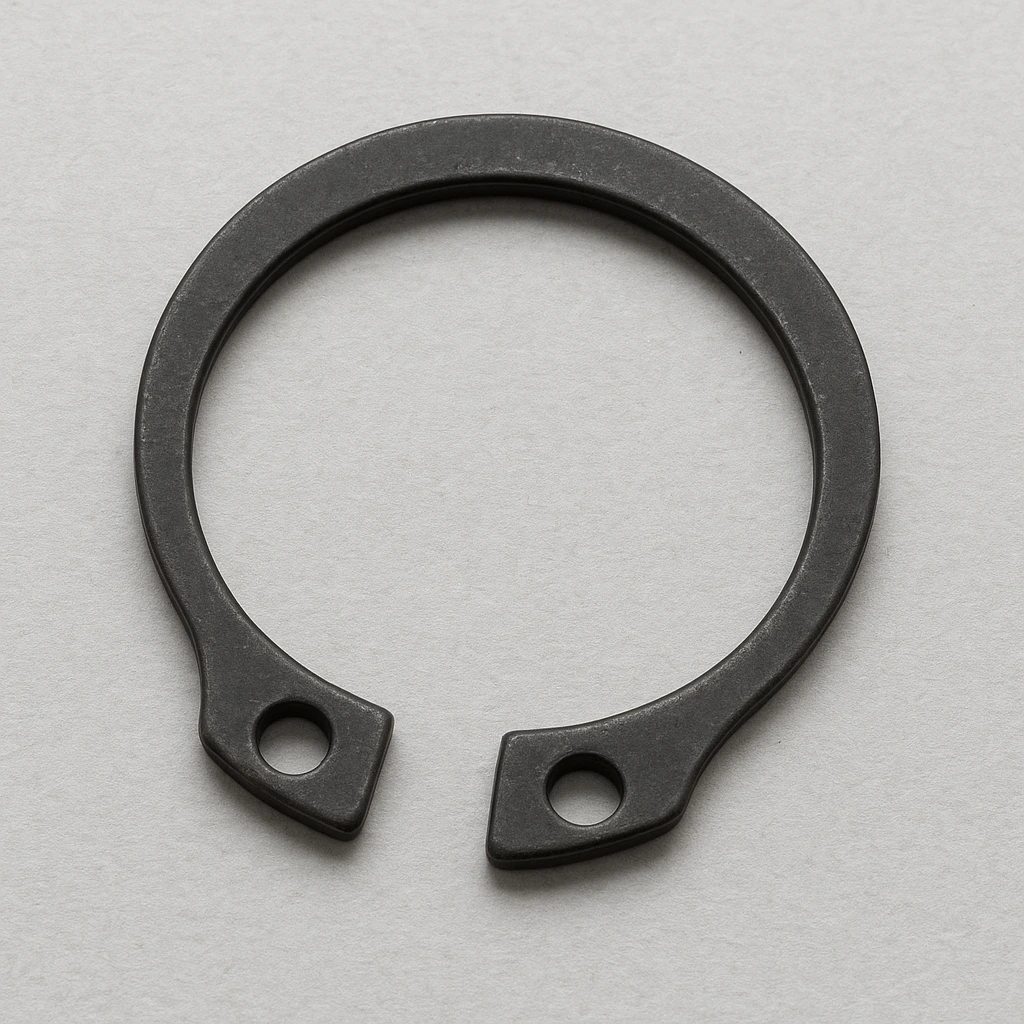

- External Circlips (Tapered Section Rings): These are the most common type, featuring a tapered cross-section and often having holes (lugs) for easy installation and removal using specific circlip pliers. They conform to standards like DIN 471.
- External Snap Rings (Constant Section Rings): These have a uniform or constant thickness throughout their circumference. They are often lug-free and are known for their high strength and suitability in applications with high impact loads.
Key Applications & Industries
The versatility and reliability of external rings make them essential across a vast spectrum of industries:
| Industry Segment | Typical Applications |
| Automotive & Transportation | Securing piston pins, clutch assemblies, gear components in transmissions, and wheel hub assemblies. |
| Heavy Industrial Machinery | Locking bearings and gears on rotating shafts, securing linkages in heavy equipment. |
| Agricultural Equipment | Fastening components in tractors, pumps, and processing machinery, enduring high vibration. |
| General Engineering & Manufacturing | Retaining components in power tools, pumps, valves, and electric motors. |
| Aerospace & Defense | Securing critical parts in actuators, hydraulic systems, and complex machinery where reliability is non-negotiable. Export to Sheets |
Why Choose IndiaFastners for Your External Rings?
When sourcing crucial components, quality and adherence to standards are paramount. Here’s why IndiaFastners is the preferred choice for industrial clients nationwide:
- Compliance to Global Standards: We manufacture our external circlips to strict specifications, including DIN 471 and IS 3075, guaranteeing dimensional accuracy and performance.
- Superior Material Options: We offer rings in various high-grade materials to suit different load and environment requirements:
- Carbon Spring Steel (e.g., EN42J): For high-strength, general-purpose applications.
- Stainless Steel (SS 304, SS 316): Ideal for corrosive or high-temperature environments.
- Corrosion Resistance: Our standard finish options include Black Phosphate or Zinc Plating, providing robust corrosion protection and extending product lifespan.
- Wide Size Range: Our inventory covers a vast array of shaft diameters and ring sizes, from small precision rings for electronics to heavy-duty rings for large industrial shafts.
- Made in India Quality: By sourcing from IndiaFastners, you support local manufacturing while benefiting from world-class quality control and prompt nationwide supply.
Technical Specification Snapshot (DIN 471 External Circlips)
| Specification | Detail |
| Standard | DIN 471 (Shaft Diameter Range Specified) |
| Material | Spring Steel (Carbon Steel), Stainless Steel (SS 304/316) |
| Finish | Phosphate & Oil, Zinc Plating, Black Oxide |
| Function | Axial Retention on Grooved Shafts |
Conclusion: Lock in Performance and Reliability
Whether you call them external rings, circlips, or snap rings, these fasteners are crucial for any assembly requiring secure axial retention on a shaft.
IndiaFastners is committed to being your reliable partner for all your industrial fastening needs. Contact us today to discuss your specific application, request a quote, or view our comprehensive size chart and pricing.
