Secure Your Assemblies: The Essential Guide to Spring Washers from IndiaFastners
Discover the essential role of Spring Washers (or Lock Washers) in preventing loosening due to vibration and load in critical industrial applications. IndiaFastners offers a comprehensive range of high-quality helical spring washers, including DIN 127 and DIN 7980 standards, in various materials and finishes.
Why Spring Washers are Indispensable for Secure Fastening
In the dynamic world of construction, automotive, heavy machinery, and electrical engineering, a secure joint is paramount to safety and performance. Bolts and nuts, under constant stress from vibration, thermal expansion, and contraction, often face the risk of loosening—a potentially catastrophic failure.
This is where the humble but mighty Spring Washer, often referred to as a Split Lock Washer or Helical Spring Washer, plays its critical role. As a leading supplier and manufacturer of industrial fasteners in India, IndiaFastners is committed to providing premium spring washers engineered for maximum reliability.
What is a Spring Washer and How Does it Work?

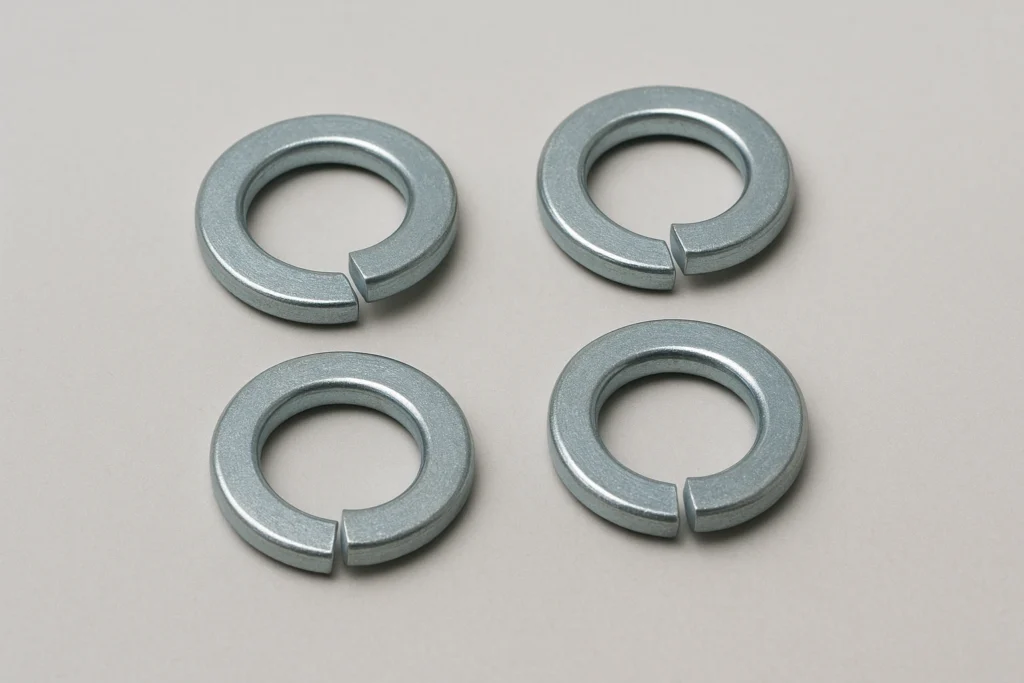

A spring washer is a metal ring split at one point and bent into a slight helical (twisted) shape. It is specifically designed to act as a spring, applying an axial load between the fastener’s head and the substrate surface.
The Locking Mechanism:
- Spring Tension: When the nut or bolt is tightened, the helical shape of the washer is compressed flat. This compression stores a spring force (or stored energy) within the washer.
- Friction and Resistance: This persistent spring force pushes the underside of the fastener head against the surface and holds the bolt threads tightly against the nut threads. This continuous pressure creates increased friction and resistance to any loosening rotation caused by vibration.
- Positive Lock: The sharp, helical ends of the split washer are intended to “dig” slightly into the fastener head and the mating surface when fully tightened, providing a mechanical lock that resists counter-clockwise rotation.
Types of Spring Washers You Need
Choosing the right type is crucial for your specific application. IndiaFastners provides spring washers adhering to both Indian and international standards:
| Spring Washer Type | Common Standard (DIN/IS) | Key Features | Primary Application |
| Flat Section (Helical Split Lock) | DIN 127B / IS 3063 | Rectangular cross-section, widely used. | General purpose, suitable for standard hexagonal bolt/nut heads. |
| Square Section (Helical Split Lock) | DIN 7980 / IS 6735 | Square cross-section. Often preferred for use with cylindrical (socket head cap) screws. | Machinery, automotive, and applications requiring higher clamping force per unit weight. |
| Curved/Wave Washers | DIN 137A/B | Non-split, non-directional, bowed or waved shape. | Light-duty applications, taking up slack, absorbing minor shock loads, or compensating for material expansion/contraction. |
| Disc Spring Washers | DIN 2093 (Belleville Washers) | Conical shape, offering high force in a small space. | Heavy-duty applications, high-load requirements, or to maintain tension over a long period. |
Essential Materials and Finishes for Industrial Use
To withstand diverse Indian environmental and operational conditions, our spring washers are available in a variety of high-performance materials and finishes:
| Material Grade | Key Properties | Ideal Applications |
| Spring Steel (Carbon Steel) | High strength and excellent spring action (HV 430-530 hardness). | General industrial, machinery, construction. |
| Stainless Steel (SS 304, SS 316) | Superior corrosion resistance. SS 316 for marine/chemical environments. | Chemical plants, food processing, medical, and high-humidity areas. |
| Alloy Steel | Used for heavy-duty, high-tensile applications. | Heavy equipment, structural assemblies. |
| Non-Ferrous Alloys | Brass, Copper, Bronze for specific electrical or non-magnetic requirements. | Electrical panels, sensitive equipment. Export to Sheets |
Corrosion-Resistant Finishes:
- Auto Black (Black Oxide): Standard finish for protection during storage and transport.
- Zinc Plating (Blue/Yellow Passivation): Provides good corrosion resistance in mild environments. De-embrittlement process is crucial for high-strength steel.
- Hot-Dip Galvanized (HDG): Excellent long-term protection for outdoor and structural applications (e.g., transmission towers, construction).
- Cadmium Plated / Nickel Plated / Phosphate Coated: Specialty finishes for specific environments.
The IndiaFastners Advantage
As a trusted spring washer manufacturer and supplier in India, IndiaFastners stands for quality, precision, and reliability.
- Standards Compliance: Our products strictly conform to major Indian (IS 3063, IS 6735) and international (DIN 127, DIN 7980, ASME B18.21.1) specifications.
- Wide Size Range: We supply metric sizes from M3 to M48 and also cater to imperial requirements.
- Quality Assurance: Each batch undergoes rigorous testing, including chemical composition, hardness, decarburization, and compression tests, to guarantee consistent performance.
- Pan-India Supply: Whether you are in Mumbai, Delhi, Chennai, or a remote industrial hub, we ensure timely delivery of your required fasteners.
Don’t compromise on the integrity of your assemblies. For durable, precision-engineered split lock washers and comprehensive fastening solutions, partner with IndiaFastners.
Ready to secure your project against vibration and loosening?
