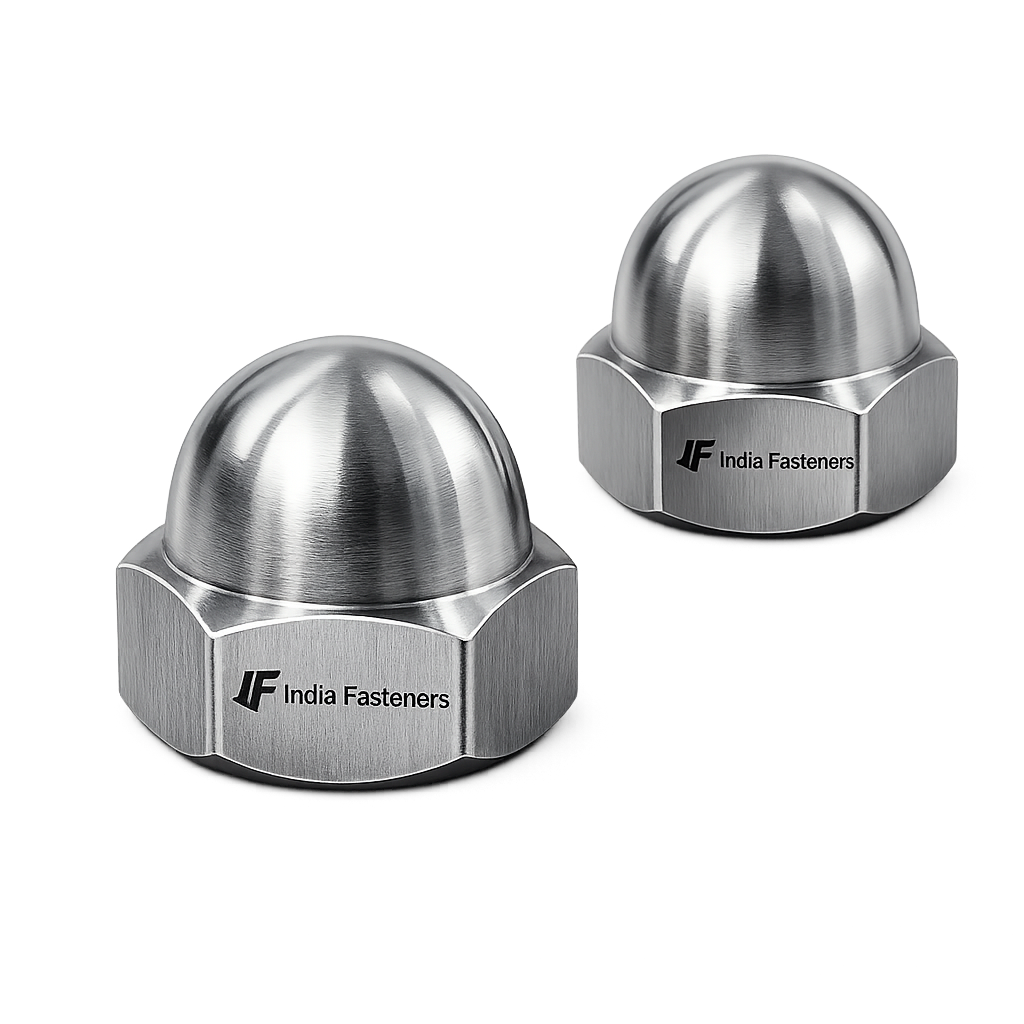

Cap NutS Protective

1. Regional Industry Context — Middle East Operating Environment

Protective fastening systems used across Gulf Cooperation Council (GCC) industrial facilities operate under environmental and operational conditions significantly different from temperate regions. Fasteners are not evaluated solely for load transmission; they are assessed for personnel safety, environmental durability, and long-term mechanical reliability.

Cap NutS Protective are therefore applied as engineering safety components, not cosmetic accessories.

1.1 GCC Industrial Infrastructure Exposure Conditions

Typical operating environments include:

Oil & Gas Production Facilities

• Onshore Saudi Arabian oil fields
• Offshore UAE production platforms
• Wellhead structures
• Pipe racks and modular skid assemblies
• Mechanical guarding around rotating equipment

Exposure characteristics:

• Wind-borne desert sand
• Hydrocarbon contamination
• Temperature fluctuation exceeding 50°C surface exposure
• UV degradation risks
• Salt aerosol in offshore locations

Unprotected bolt projections rapidly accumulate debris, corrosion products, and mechanical damage.

Petrochemical Complexes — Jubail & Ruwais Type Facilities

Applications include:

• Structural walkways
• Pump bases
• Process equipment platforms
• Heat exchanger supports
• Valve stations

Engineering concern:
Exposed threaded ends create:

• Personnel snag hazards
• PPE damage risks
• Initiation points for corrosion creep
• Contaminant accumulation affecting maintenance access

Protective Cap Nuts eliminate exposed thread geometry while maintaining preload integrity.

LNG Terminals & Cryogenic Installations

Typical installations:

• Pipe supports
• Instrument brackets
• Cable trays
• Access ladders

Cryogenic environments introduce:

• Moisture condensation
• Ice formation around threads
• Thermal cycling stress

A closed-end dome nut prevents freezing contaminants inside threads, preserving removal capability during shutdown maintenance.

Desalination Plants

Environmental factors:

• Continuous saline mist
• Chloride exposure
• High humidity environments

Open thread ends act as capillary corrosion initiators. Protective cap nuts provide a barrier against moisture ingress.

Power Generation Facilities

Common uses:

• Turbine auxiliary structures
• Guard rail systems
• Equipment foundations
• Electrical panel support assemblies

Personnel movement density is high; injury prevention is mandatory under plant safety procedures.

Structural Steel Installations

Applications:

• Access platforms
• Stairways
• Conveyor frames
• Pipe bridges

Project safety audits routinely identify protruding threaded fasteners as unacceptable hazards.

Rotating Equipment Guards & Conveyor Systems

Mechanical hazards include:

• Clothing entanglement
• Skin injury during inspection
• Damage to protective covers

Protective Cap Nuts eliminate sharp thread exposure without affecting clamping performance.

1.2 Engineering Risks Created by Exposed Bolt Threads

Unprotected threaded ends introduce several operational risks:

Risk Category	Engineering Impact
Personnel Injury	Cuts, abrasions, snagging
Corrosion Initiation	Thread crests trap moisture
Foreign Particle Ingress	Sand and dust contamination
Mechanical Damage	Impact deformation of threads
Maintenance Difficulty	Seized nuts during shutdown
Inspection Non-Compliance	Safety audit failures

In GCC desert facilities, airborne sand behaves as an abrasive particulate, accelerating corrosion and wear on exposed threads.

1.3 Personnel Safety Requirements in GCC Facilities

Major operators impose strict mechanical safety expectations:

• Elimination of exposed sharp edges
• Protection of protruding hardware
• Maintenance accessibility assurance
• Long-term removal capability

Protective Cap Nuts function as safety termination devices within fastening systems.

They are commonly specified in:

• Structural specifications
• Mechanical completion checklists
• HSE compliance inspections
• Third-party audit reviews

1.4 Environmental Protection Function

A Protective Cap Nut provides multiple barriers:

Mechanical Barrier

• Prevents impact damage to bolt threads

Corrosion Barrier

• Limits electrolyte accumulation

Contamination Barrier

• Prevents sand, dust, and debris intrusion

Humidity Protection

• Reduces crevice corrosion initiation

Marine Exposure Resistance

• Minimizes salt crystallization inside threads

2. Technical Definition of Protective Cap Nut

A Protective Cap Nut (Dome Nut) is defined as:

A closed-end internally threaded hexagonal nut designed to secure bolted joints while fully covering the exposed threaded end of a bolt or stud.

It is simultaneously:

2.2 Applicable Dimensional Standards

Protective Cap Nuts commonly comply with:

DIN 1587

• International reference standard for cap nuts
• Defines dome geometry and dimensions

ISO Compatibility

• ISO 4032 / ISO 4033 hex nut references
• Metric thread conformity

ASME Compatibility

• ASME B18.2.2 dimensional compatibility
• UNC/UNF threading acceptance

Thread forms:

• ISO Metric coarse/fine
• UNC
• UNF

2.3 Difference Between Standard Hex Nut and Cap Nut

Parameter	Hex Nut	Protective Cap Nut
Thread End	Open	Fully enclosed
Personnel Safety	Not protected	Protected
Corrosion Protection	Limited	Enhanced
Thread Contamination	Possible	Prevented
Appearance	Functional	Safety finished

The load path remains through the threads and bearing surface; the dome does not participate in load transfer.

2.4 Protective Sealing Function

Although not pressure-tight, the dome provides:

• Physical isolation from environment
• Reduced oxygen exposure
• Reduced electrolyte retention
• Protection against mechanical damage

2.5 Thread Engagement Requirements

Engineering rules require:

Minimum thread engagement:

Where:

• = engagement length
• = bolt diameter

Insufficient engagement results in thread stripping before bolt proof load.

2.6 Dome Height Considerations

Dome height must accommodate bolt projection without bottoming.

Key requirements:

• Bolt must not contact dome interior
• Full clamp load achieved before dome contact
• Clearance allowance maintained

Typical allowance:

Where = thread pitch.

3. Mechanical Function & Fastening Integrity

Protective Cap Nuts do not alter fundamental bolted joint mechanics. They function within established preload theory.

3.1 Axial Load Transfer

Load path:

Bolt Head → Clamped Components → Nut Threads → Bolt Threads

The dome has no structural load role.

3.2 Tensile Preload Concept

Preload ensures joint integrity.

Bolt preload equation:

Where:

• = preload force
• = applied torque
• = nut factor
• = nominal diameter

Typical nut factor:

• Dry: 0.20
• Lubricated: 0.15

3.3 Clamp Force Generation

Proper tightening converts torque into:

• Bolt tension
• Clamp compression

Protective Cap Nuts maintain identical clamp behavior as standard nuts when correctly installed.

3.4 Stress Distribution

Stress occurs primarily in:

• First engaged threads
• Bearing surface
• Bolt shank

Dome section experiences minimal mechanical stress.

3.5 Thread Galling Prevention

Galling risk exists especially in stainless steel fasteners.

Preventive methods:

• Controlled surface finish
• Lubrication
• Correct torque rate
• Material pairing selection

The enclosed dome protects threads from abrasive damage which can increase galling probability.

3.6 Prevention of Mechanical Damage

Exposed threads suffer:

• Impact deformation
• Burr formation
• Cross-threading during removal

Cap nuts eliminate these failure mechanisms.

3.7 Thread Shear Area Calculation

Where:

• = shear area
• ​ = mean thread diameter
• ​ = engagement length

Design ensures nut thread shear capacity exceeds bolt tensile capacity.

3.8 Proof Load Relationship

Proof load represents maximum elastic loading. ​

Where:

• = tensile stress area
• ​ = proof stress

Protective cap nuts must match bolt grade compatibility.

3.9 Safety Factor Logic in GCC Mechanical Assemblies

Typical EPC practice:

Application	Safety Factor
Structural connections	2.0–3.0
Equipment mounting	2.5
Dynamic equipment	3.0+
Safety guarding	Conservative preload limits

Protective Cap Nuts contribute to long-term reliability by preserving thread integrity across maintenance cycles.

4. Applicable Materials — Engineering Selection for GCC Conditions

Material selection for protective cap nuts is determined by:

• Environmental exposure
• Temperature range
• Corrosion risk
• Mechanical load demand
• Maintenance accessibility
• Operator specification requirements

The GCC operating environment introduces simultaneous exposure to:

• High temperature
• Chloride contamination
• Sand abrasion
• Marine humidity
• Chemical vapor exposure

Material selection must therefore prevent premature corrosion initiation at fastener terminations.

4.1 Carbon Steel Protective Cap Nuts

(ASTM A563 Series)

Carbon steel remains widely used where structural strength dominates over corrosion resistance.

Typical grades:

• ASTM A563 Grade A
• ASTM A563 Grade DH
• ASTM A563 Grade C

Engineering Characteristics

• High load capacity
• Good machinability
• Suitable for coated systems
• Economical for large structural assemblies

GCC Applications

• Structural steel platforms
• Pipe supports
• Equipment frames
• Conveyor installations
• Non-corrosive indoor mechanical systems

Limitations

Uncoated carbon steel is unsuitable for:

• Offshore installations
• Coastal power plants
• Desalination environments

Protective coatings become mandatory.

4.2 ASTM A194 Alloy Steel Grades

Applied where elevated strength or temperature capability is required.

Common grades:

• A194 Grade 2H
• A194 Grade 7
• A194 Grade 8 (stainless)

Engineering Purpose

• Higher proof load compatibility
• Improved mechanical reliability
• Resistance to preload relaxation

Typical Use

• Pressure equipment supports
• Rotating equipment mounting
• High-temperature piping assemblies

4.3 Stainless Steel Protective Cap Nuts

(AISI 304 / AISI 316)

Stainless steel cap nuts are extensively used across GCC facilities where corrosion protection and maintenance longevity are critical.

AISI 304

Suitable for:

• General outdoor installations
• Equipment guarding
• Structural assemblies inland

Limitations:

• Moderate chloride resistance only.

AISI 316 (Preferred GCC Grade)

Enhanced properties:

• Molybdenum alloy addition
• Superior chloride resistance
• Marine atmosphere durability

Typical applications:

• Offshore platforms
• Desalination plants
• Coastal refineries
• LNG facilities

Protective dome design prevents chloride concentration inside threads.

4.4 Duplex Stainless Steel

Used in aggressive environments where conventional stainless steels may suffer pitting corrosion.

Advantages:

• High strength
• Superior pitting resistance
• Excellent stress corrosion resistance

Typical GCC use:

• Offshore topsides
• Splash-zone structures
• Chemical processing units

4.5 Brass & Non-Sparking Alloys

Specialized applications include:

• Hazardous zones
• Instrument mounting
• Explosion-risk environments

Engineering reason:
Brass minimizes spark generation during accidental impact.

4.6 Alloy Steel Protective Cap Nuts

Applied where:

• High preload requirements exist
• Dynamic loading occurs
• Thermal cycling is expected

Used in:

• Power plant structures
• Heavy equipment frames
• Turbine auxiliary systems

4.7 Material Selection vs GCC Exposure Mapping

Exposure Environment	Recommended Material
Desert Inland	Carbon Steel + Coating
Coastal Industrial	SS316
Offshore Platform	Duplex Stainless
Desalination Facility	SS316 / Duplex
Chemical Plant	Stainless / Alloy Steel
High Temperature	Alloy Steel

4.8 Standards Mapping

Protective Cap Nuts supplied for EPC projects align with:

Dimensional Standard

• DIN 1587 — Cap Nut

Thread Standards

• ISO Metric Threads
• UNC / UNF Threads

Material Standards

• ASTM A563
• ASTM A194
• ASTM F594 / F593 (Stainless)
• ISO Fastener Material Standards

4.9 NACE Considerations

Where sour service exists:

• Material hardness limits apply
• Hydrogen embrittlement risk increases
• Controlled heat treatment required

Protective Cap Nuts may be supplied compliant with:

• NACE material requirements when specified.

5. Material Comparison Table (Mandatory Engineering Reference)

Material Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Corrosion Resistance	Temperature Capability	Typical GCC Application
ASTM A563 Carbon Steel	240–380	400–600	Low	−20°C to 300°C	Structural steel
A194 Grade 2H	≥ 450	≥ 860	Moderate (coated)	Up to 425°C	Pressure equipment
Stainless Steel 304	≥ 205	≥ 515	Good	−196°C to 425°C	General outdoor
Stainless Steel 316	≥ 205	≥ 515	Excellent	−196°C to 500°C	Marine & desalination
Duplex Stainless Steel	≥ 450	≥ 620	Superior	−50°C to 300°C	Offshore
Brass Alloy	~200	~350	Excellent	−50°C to 200°C	Hazardous zones

Values represent typical ranges; project specifications govern acceptance.

6. Heat Treatment & Metallurgical Control

Metallurgical stability determines long-term fastener performance.

Protective Cap Nuts supplied to GCC EPC projects require controlled heat treatment documentation.

6.1 Normalizing

Applied to carbon steel components.

Purpose:

• Refines grain structure
• Improves uniform mechanical properties
• Reduces internal stress

6.2 Quenching & Tempering

Applied to alloy steels and high-strength grades.

Process:

1. Austenitizing
2. Rapid quenching
3. Controlled tempering

Results:

• Increased strength
• Controlled hardness
• Improved toughness

6.3 Solution Annealing — Stainless Steel

Essential for stainless materials.

Purpose:

• Restores corrosion resistance
• Dissolves carbide precipitation
• Prevents intergranular corrosion

Cooling must be rapid to maintain austenitic structure.

6.4 Stress Relief Processing

Performed after forming or machining operations.

Benefits:

• Dimensional stability
• Reduced distortion
• Improved fatigue resistance

6.5 Hydrogen Embrittlement Prevention

Critical for plated carbon steel fasteners.

Controls include:

• Post-plating baking
• Controlled electroplating processes
• Hardness limitation monitoring

Failure to control hydrogen embrittlement can result in delayed brittle fracture.

6.6 Hardness Control Limits

Typical acceptance ranges:

Material	Hardness Range
Carbon Steel	150–300 HB
Alloy Steel	Controlled per grade
Stainless Steel	≤ 95 HRB typical

Hardness verification is mandatory for EPC inspection release.

6.7 Metallurgical Reliability Expectations

GCC consultants typically require:

• Heat number traceability
• Mill Test Certificates
• Mechanical property verification
• Heat treatment records
• Batch-level control

Protective Cap Nuts must demonstrate repeatable metallurgical consistency across production lots.

7. Manufacturing Process Flow — Documentation-Level Description

Protective Cap Nut manufacturing follows controlled industrial fastener production discipline.

7.1 Raw Material Verification

Incoming material inspection includes:

• Mill certificate verification
• Chemical composition review
• Heat number allocation
• Visual inspection
• Dimensional bar verification

Material is rejected if traceability is incomplete.

7.2 Heat Number Traceability

Each production batch maintains:

• Heat identification
• Production batch number
• Inspection linkage
• Documentation traceability

Traceability is maintained through final shipment.

7.3 Cold Forming / Hot Forging

Selection depends on size and material.

Cold Forming

• High dimensional accuracy
• Improved grain flow
• Higher productivity

Hot Forging

• Applied to large sizes
• Reduced forming stress

Forging aligns grain structure with load direction.

7.4 Nut Blank Formation

Operations include:

• Hex shaping
• Head formation
• Initial dome pre-forming

Dimensional tolerances are controlled at forging stage.

7.5 Internal Threading Process

Threading methods:

• Tapping
• Roll forming (where applicable)

Controls:

• Pitch accuracy
• Thread flank angle
• Surface finish
• Go/No-Go gauge verification

Thread accuracy directly affects preload reliability.

7.6 Dome Forming Operation

The dome is formed through controlled deformation.

Engineering requirements:

• Uniform wall thickness
• No thinning at apex
• No microcracking
• Controlled internal clearance

Improper dome forming can introduce stress concentration zones.

7.7 CNC Finishing Operations

Secondary machining ensures:

• Accurate seating face
• Dimensional tolerance compliance
• Surface quality improvement

Critical for achieving proper bearing contact.

7.8 Deburring & Surface Finishing

Operations remove:

• Sharp edges
• Burrs
• Thread contamination

Personnel safety requirements prohibit burr presence.

7.9 Heat Treatment Stage

Performed according to material specification.

Documentation includes:

• Furnace records
• Temperature charts
• Soaking duration
• Cooling method

7.10 Surface Coating / Passivation

Common treatments:

Carbon Steel:

• Zinc plating
• Hot dip galvanizing
• Mechanical galvanizing
• Fluoropolymer coatings (project-specific)

Stainless Steel:

• Chemical passivation
• Pickling

Objective:

• Corrosion resistance enhancement.

7.11 Final Inspection

Inspection stages include:

• Dimensional verification
• Thread gauging
• Dome integrity inspection
• Surface condition check
• Hardness testing
• Coating thickness measurement

7.12 Marking & Traceability

Where required:

• Manufacturer identification
• Material grade marking
• Batch traceability coding

Marking must not weaken dome integrity.

7.13 Dimensional Tolerance Control

Controlled parameters:

• Across flats dimension
• Thread class tolerance
• Dome height tolerance
• Seating face flatness
• Thread concentricity

Tolerance control ensures compatibility with EPC assembly procedures.

8. Dimensional Reference Tables — Protective Cap Nut (DIN 1587 Basis)

Protective Cap Nuts follow dimensional geometry ensuring:

• Proper wrench engagement
• Full thread engagement
• Adequate dome clearance
• Personnel safety protection

8.1 Metric Series — Dimensional Reference

Thread Size	Across Flats (s) mm	Overall Height (h) mm	Dome Height (k) mm	Thread Depth (m) mm	Recommended Bolt Projection (max) mm
M6	10	12	6	5	4
M8	13	15	7	6.5	5
M10	17	18	9	8	6
M12	19	22	11	10	7
M16	24	28	14	13	9
M20	30	34	17	16	11
M24	36	40	20	19	13
M30	46	50	25	24	16

8.2 Imperial Series — Reference Dimensions

Thread Size	Across Flats (in)	Overall Height (in)	Dome Height (in)	Thread Depth (in)	Recommended Bolt Projection (in)
1/4″	7/16	0.47	0.23	0.20	0.15
3/8″	9/16	0.59	0.28	0.24	0.18
1/2″	3/4	0.71	0.35	0.31	0.22
5/8″	15/16	0.86	0.43	0.39	0.27
3/4″	1-1/8	1.02	0.51	0.47	0.32
1″	1-1/2	1.34	0.67	0.63	0.45

Values follow DIN 1587 proportional geometry.

Engineering Note

Bolt projection must never contact dome interior before clamp load is achieved.

9. Strength & Load Capacity Table

Cap nuts must match bolt strength classification to avoid thread stripping.

Thread Size	Proof Load (kN)	Recommended Torque (Nm)	Maximum Clamp Load (kN)	Minimum Thread Engagement
M6	8	9–11	6	1 × D
M8	15	22–27	11	1 × D
M10	25	45–55	18	1 × D
M12	36	75–90	26	1 × D
M16	70	180–210	52	1 × D
M20	110	350–400	80	1 × D
M24	160	600–700	115	1 × D

9.1 Lubrication Influence

Preload variation due to friction:

Condition	Typical Torque Factor
Dry	High friction
Zinc plated	Moderate friction
Lubricated	Reduced torque required
Stainless steel dry	High galling risk

Torque values must always consider coating and lubrication.

10. Bolt Torque Chart (Mandatory Engineering Reference)

Torque must produce controlled preload without yielding bolt or nut threads.

Carbon Steel Fasteners

Bolt Size	Dry Torque (Nm)	Lubricated Torque (Nm)
M6	11	8
M8	27	20
M10	54	40
M12	95	70
M16	230	170
M20	460	340
M24	800	600

Stainless Steel Fasteners

Lower torque applied to avoid galling.

Bolt Size	Dry Torque (Nm)	Lubricated Torque (Nm)
M6	9	6
M8	20	15
M10	40	30
M12	70	50
M16	170	125
M20	340	250
M24	580	430

Engineering Practice

GCC EPC projects typically target:

This ensures:

• Joint stability
• Fatigue resistance
• Maintainable disassembly

11. Thread Engagement Engineering Guide

Correct engagement ensures nut threads do not fail before bolt tensile capacity.

11.1 Minimum Thread Engagement Formula

Where:

• = engagement length
• = preload force
• ​ = mean diameter
• = allowable shear stress

Simplified engineering rule:

11.2 Bolt Projection Calculation

Requirement:

Bolt projection must be less than dome internal clearance.

11.3 Cap Clearance Allowance

Recommended clearance:

Prevents:

• Dome bottoming
• False torque readings
• Loss of preload

11.4 Incorrect Installation Risks

Installation Error	Result
Excess bolt projection	Dome deformation
Insufficient engagement	Thread stripping
Over-torque	Nut cracking
Dry stainless assembly	Galling seizure
Misaligned threads	Preload loss

11.5 Sample Engineering Calculation

Example:
M16 bolt, lubricated condition.

Given:

• = 170 Nm
• Nut factor =0.15
• Diameter =16 mm



Result:
Clamp force ≈ 70 kN.

Cap nut selected must provide sufficient thread depth to support this preload.

12. Mechanical Property Table

Material	Yield Strength (MPa)	Proof Load	Hardness Range	Elongation	Service Limitation
Carbon Steel	240–380	Medium	150–300 HB	Moderate	Requires coating
Alloy Steel	≥450	High	Controlled	Moderate	Heat treated
SS304	≥205	Medium	≤95 HRB	High	Chloride limits
SS316	≥205	Medium	≤95 HRB	High	Marine suitable
Duplex SS	≥450	High	Controlled	Moderate	Offshore service

Mechanical compatibility between bolt and cap nut is mandatory.

13. Corrosion Resistance Comparison Table

Material	Marine Atmosphere	High Humidity	Chemical Exposure	Outdoor Structural	Desert Sand Exposure
Carbon Steel	Poor	Poor	Poor	Acceptable coated	Moderate
Zinc Plated	Moderate	Moderate	Limited	Good indoor	Fair
Hot Dip Galvanized	Good	Good	Moderate	Very Good	Good
SS304	Good	Very Good	Good	Excellent	Excellent
SS316	Excellent	Excellent	Excellent	Excellent	Excellent
Duplex Stainless	Superior	Superior	Superior	Superior	Superior

Protective dome geometry significantly delays corrosion onset compared to open-thread assemblies.

14. Inspection & Quality Assurance Requirements

Protective Cap Nuts intended for GCC projects undergo structured inspection regimes.

14.1 Thread Gauge Inspection

Performed using:

• GO gauge
• NO-GO gauge

Verifies:

• Pitch diameter
• Thread tolerance class
• Engagement accuracy

14.2 Dimensional Inspection

Checked parameters:

• Across flats
• Overall height
• Dome height
• Thread depth
• Seating face perpendicularity

Measured using calibrated instruments.

14.3 Coating Thickness Verification

Typical methods:

• Magnetic thickness gauge
• Micrometer measurement
• Coating adhesion checks

Ensures corrosion protection durability.

14.4 Positive Material Identification (PMI)

Applied for:

• Stainless steel
• Duplex stainless
• Alloy steel materials

Confirms chemical composition matches specification.

14.5 Salt Spray Testing

Common acceptance reference:

• 72 to 720 hours depending on coating system

Used to validate corrosion protection performance.

14.6 Hardness Testing

Methods:

• Rockwell
• Brinell
• Vickers

Ensures compliance with:

• Mechanical strength
• Hydrogen embrittlement prevention

14.7 Visual Dome Integrity Inspection

Inspection focuses on:

• Absence of cracks
• Uniform dome thickness
• No forming defects
• Smooth internal cavity

Dome integrity is critical for safety performance.

14.8 Documentation Certification

Typical EPC documentation includes:

• Mill Test Certificate
• Heat treatment record
• Inspection report
• Coating certificate
• Dimensional inspection record

Certification commonly aligned with:

EN 10204

• 3.1 Material Certification
• 3.2 Third-party witnessed certification

14.9 GCC Consultant Expectations

Inspection authorities typically evaluate:

• Traceability continuity
• Inspection procedure approval
• Gauge calibration records
• Batch identification control
• Compliance with approved vendor data sheets

Protective Cap Nuts supplied for project use must demonstrate inspection readiness equivalent to other structural fasteners.

15. Industries Served — Middle East Industrial Application Scope

Protective Cap Nuts are specified across multiple sectors where personnel safety, corrosion prevention, and fastening durability must coexist.

Their use is typically governed by mechanical specifications, HSE directives, and inspection close-out requirements.

15.1 Oil & Gas Facilities

Applications include:

• Pipe rack structural assemblies
• Equipment skid installations
• Valve platform supports
• Access stairways and handrails
• Cable tray support systems
• Safety guarding structures

Engineering drivers:

• Elimination of exposed threaded hazards
• Long-term corrosion mitigation
• Prevention of thread damage during maintenance operations

Protective cap nuts are frequently applied on non-pressure bolting where personnel interaction occurs.

In desert oil fields, sand accumulation inside exposed threads leads to seizure during shutdown activities. The dome enclosure prevents particulate ingress.

15.2 Refineries

Refinery environments expose fasteners to:

• Hydrocarbon vapors
• Chemical washdown fluids
• Elevated temperatures
• Continuous vibration

Typical applications:

• Pump bases
• Compressor auxiliaries
• Structural maintenance platforms
• Instrument mounting brackets

Protective Cap Nuts improve maintainability by preserving thread condition over multi-year operating cycles.

15.3 Petrochemical Plants

Petrochemical facilities demand strict housekeeping and safety standards.

Cap nut applications include:

• Structural steel assemblies
• Pipe supports
• Mechanical access platforms
• Guard rail systems
• Conveyor support frames

Engineering objective:
Prevent injury risk and maintain corrosion-resistant fastening terminations.

15.4 LNG Installations

Cryogenic plants require fasteners that remain serviceable after thermal cycling.

Protective Cap Nuts provide:

• Moisture exclusion
• Reduced ice formation around threads
• Improved disassembly after low-temperature exposure

Used on:

• Walkway systems
• Instrument supports
• Cable ladders
• Auxiliary equipment mounting

15.5 Desalination Plants

Operating conditions:

• Continuous saline humidity
• Chloride-rich atmosphere
• Splash exposure

Protective Cap Nuts manufactured from stainless steel or duplex materials are applied on:

• Pipe bridge supports
• Pump structures
• Electrical support frames
• Access platforms

The enclosed dome delays corrosion initiation at threaded ends.

15.6 Power Generation Plants

Typical installations:

• Turbine auxiliary structures
• Generator platform supports
• Cooling system walkways
• Electrical enclosure mounting

Safety audits routinely require removal of exposed threads in personnel-access zones.

Cap nuts assist compliance without altering mechanical design.

15.7 Structural Steel Infrastructure

Used extensively on:

• Bridges within industrial facilities
• Pipe racks
• Elevated walkways
• Maintenance access systems

Protective cap nuts function as final fastening termination devices following bolt tightening.

15.8 Renewable Energy Installations

Increasing GCC renewable deployments require corrosion-resistant fastening.

Applications:

• Solar mounting structures
• Wind turbine auxiliary platforms
• Electrical equipment supports

Environmental exposure includes sand abrasion and thermal cycling.

16. Export & GCC Supply Capability

Protective Cap Nuts supplied for Middle East projects must meet logistics and documentation expectations equivalent to critical industrial components.

16.1 Regional Supply Coverage

Export capability supports projects across:

• Saudi Arabia
• United Arab Emirates (Dubai / Abu Dhabi)
• Qatar
• Oman
• Kuwait
• Bahrain

Supply requirements typically include both project bulk orders and maintenance spares.

16.2 Export Packaging Discipline

Packaging must protect mechanical integrity during long-distance sea transport.

Typical packaging practices:

• Moisture-resistant inner packaging
• Vapor corrosion inhibitor (VCI) materials
• Batch-separated cartons
• Palletized shipment
• Heat-treated export pallets
• Shock-resistant stacking

Objective:
Prevent corrosion or mechanical damage before site receipt.

16.3 Moisture Protection Methods

Used particularly for carbon steel products:

• Oil film protection
• VCI paper wrapping
• Sealed polyethylene liners
• Desiccant inclusion for container shipments

Gulf shipping routes expose cargo to high humidity variation; preventive measures are required.

16.4 Material Test Reports (MTR)

Each shipment typically includes:

• Heat number traceability
• Chemical composition report
• Mechanical property verification
• Heat treatment confirmation

Documentation supports EPC material receiving inspection.

16.5 Inspection Release Documentation

Common documentation packages:

• Inspection & Test Plan (ITP)
• Dimensional inspection report
• Coating inspection report
• Hardness verification report
• Packing list traceability
• Certificate of conformity

Inspection release may be witnessed by independent inspection agencies depending on project requirements.

16.6 Traceability Systems

Traceability links:

Raw Material → Production Batch → Inspection Record → Shipment

Traceability ensures:

• Replacement compatibility
• Failure investigation capability
• Long-term asset documentation compliance

16.7 Container Loading Control

Engineering logistics practices include:

• Weight distribution control
• Moisture monitoring
• Physical segregation of material grades
• Damage prevention during handling

Incorrect loading can compromise coating integrity before arrival.

17. Procurement & Installation Engineering View

Protective Cap Nuts are often reviewed during EPC procurement from a practical installation standpoint.

17.1 Correct Bolt Projection

Installer must verify:

• Bolt end fully enclosed
• No dome contact prior to tightening
• Adequate thread engagement maintained

Incorrect projection invalidates safety function.

17.2 Torque Application Sequence

Recommended practice:

1. Install standard hex nut (if double-nut design used) or cap nut directly.
2. Apply preliminary torque.
3. Perform cross-pattern tightening where applicable.
4. Apply final torque value.
5. Verify dome clearance.

Torque must never be increased to compensate for incorrect bolt length.

17.3 Lubrication Selection

Typical lubricants:

• Molybdenum disulfide compounds
• Anti-seize compounds
• Nickel-based lubricant for stainless steel

Purpose:

• Prevent galling
• Achieve consistent preload
• Enable future removal

17.4 Corrosion Protection Strategy

Selection depends on environment:

Environment	Recommended Protection
Desert inland	Zinc plated carbon steel
Coastal facility	SS316
Offshore	Duplex stainless
Chemical plant	Alloy steel or stainless
Desalination	SS316 minimum

Protective Cap Nuts enhance overall corrosion management of bolted assemblies.

17.5 Field Inspection Checklist

Site inspectors typically verify:

• Correct material grade
• Thread engagement depth
• Absence of dome deformation
• Coating integrity
• Torque marking completion
• Traceability marking visibility

Non-conforming installations may require replacement during mechanical completion.

17.6 Replacement & Maintenance Guidance

During shutdown maintenance:

• Inspect dome integrity
• Check corrosion accumulation
• Replace damaged cap nuts
• Avoid reuse if threads are worn

Protective cap nuts are low-cost components but play a significant role in long-term maintainability.

17.7 Storage Requirements for Gulf Climate

Warehouse storage should ensure:

• Covered storage area
• Dry environment
• Elevated pallet placement
• Original packaging retention
• Segregation by material grade

Improper storage can compromise coating prior to installation.

18. Custom Engineering Capabilities

Industrial projects frequently require deviations from standard catalog geometry.

Protective Cap Nuts may be engineered to project-specific requirements.

18.1 Special Dome Heights

Used where:

• Extended bolt projection exists
• Additional thread protection required
• Retrofit applications occur

Custom dome geometry maintains safety compliance.

18.2 Extended Protection Designs

Applications include:

• Heavy structural assemblies
• High vibration equipment
• Exposed maintenance zones

Extended dome provides increased environmental shielding.

18.3 Decorative Stainless Finishing for Exposed Equipment

Applied in visible industrial zones:

• Stainless brushed finish
• Polished finish
• Architectural exposure installations

Purpose remains corrosion resistance rather than aesthetics.

18.4 NACE-Compliant Material Supply

Available for:

• Sour service environments
• Hydrogen sulfide exposure areas

Material hardness and metallurgy controlled to prevent cracking.

18.5 Custom Coating Systems for Offshore Environments

Examples:

• PTFE-based coatings
• Fluoropolymer systems
• High-performance marine coatings

Selected based on project corrosion philosophy.

18.6 Project-Specific Marking & Traceability

Capabilities include:

• Batch coding
• Heat number identification
• Project identification marking
• Inspection traceability engraving

Supports EPC documentation lifecycle management.

Concluding Engineering Statement

Protective Cap Nuts function as integral safety and protection components within industrial fastening systems operating in GCC environments.

Their engineering role extends beyond fastening:

• Preservation of bolt thread integrity
• Reduction of corrosion initiation points
• Enhancement of personnel safety compliance
• Improvement of maintenance accessibility
• Support of long-term asset reliability

A manufacturer supplying Protective Cap Nuts for Middle East EPC projects must demonstrate:

• Understanding of fastening mechanics
• Compliance with international standards
• Metallurgical control discipline
• Inspection readiness
• Environmental suitability for Gulf conditions
• Export documentation capability

When evaluated under consultant review criteria typical of major regional operators, a technically disciplined supply approach confirms suitability for project qualification and industrial application assessment.
