Spring nut

1. Regional Industry Context — Middle East Mechanical Support Environment

1.1 GCC Construction Philosophy

Mechanical support systems across the Gulf Cooperation Council (GCC) region are fundamentally shaped by large-scale Engineering, Procurement and Construction (EPC) project execution. Facilities are designed for continuous industrial operation under harsh environmental exposure while maintaining accessibility for inspection, maintenance, and modification.

Across Saudi Arabia, UAE, Qatar, Oman, Kuwait, and Bahrain, modern industrial construction avoids permanent welded support methods wherever adjustable mechanical solutions can be implemented.

Spring nuts exist within this engineering philosophy.

They form a core fastening interface inside modular strut channel support systems, enabling installation without welding, drilling, or site machining.

1.2 Industries Utilizing Spring Nuts in GCC Projects

Spring nuts are routinely specified in the following sectors:

Oil & Gas Processing Facilities

• Pipe support assemblies
• Instrument tubing supports
• Cable ladder and tray fixing
• Valve station mounting frames
• Analyzer shelter installations

Continuous plant operation requires removable connections. Spring nuts permit maintenance teams to reposition or replace supports without hot work permits.

Offshore Platforms

Offshore structures impose constraints including:

• Limited welding operations
• High corrosion exposure
• Restricted installation access

Spring nuts enable:

• Fast modular installation
• Reduced installation labor offshore
• Controlled torque-based fastening

Refineries & Petrochemical Complexes

Refineries contain dense routing of:

• Process piping
• Electrical cable management
• Instrumentation racks

Adjustable strut channel systems combined with spring nuts allow late-stage routing adjustments common in EPC commissioning phases.

Power Generation Plants

Applications include:

• Cable tray suspension
• HVAC equipment supports
• Bus duct supports
• Lighting and auxiliary systems

Thermal cycling requires supports capable of adjustment without structural modification.

LNG Terminals

LNG facilities require:

• High reliability fastening
• Corrosion-resistant assemblies
• Maintainable modular supports

Spring nuts allow component replacement without disturbing adjacent systems.

Desalination Plants

Continuous exposure to saline moisture accelerates corrosion risks.

Spring nuts supplied in appropriate material grades enable:

• Rapid replacement during shutdown maintenance
• Compatibility with corrosion-protected channel systems

Airport MEP Infrastructure

Large airport projects across GCC rely heavily on:

• suspended MEP systems
• electrical distribution supports
• fire protection piping supports

Spring nuts significantly reduce installation time across repetitive support layouts.

Metro Rail & Tunnel Systems

Tunnel environments require:

• vibration resistance
• non-welded installation methods
• controlled fastening torque

Spring nuts support cable trays, signaling equipment, and ventilation systems.

Commercial High-Rise MEP Installations

High-rise construction emphasizes:

• prefabrication
• modular supports
• installation speed

Spring nuts enable floor-by-floor installation without structural modification.

District Cooling Plants

District cooling infrastructure contains extensive piping networks requiring adjustable supports capable of accommodating thermal expansion.

1.3 Why Adjustable Support Systems Dominate GCC Construction

Fast Installation Requirements

Mega EPC projects operate under aggressive schedules. Welding-based supports introduce:

• hot work permits
• inspection delays
• safety risks

Spring nut assemblies eliminate these constraints.

Modular Strut Channel Philosophy

Strut channel systems provide:

• continuous mounting slots
• universal compatibility
• standardized support geometry

Spring nuts are the fastening element that activates adjustability.

Reduced Site Welding

Minimizing welding reduces:

• heat-affected zones
• coating damage
• structural distortion
• inspection complexity

Maintenance Accessibility

Facilities in GCC environments prioritize maintainability.

Spring nuts allow:

• relocation of supports
• equipment replacement
• expansion of cable routes

without cutting or grinding.

Thermal Expansion Considerations

Piping systems in Gulf climates experience significant temperature variation.

Adjustable supports accommodate:

• longitudinal movement
• alignment correction
• expansion loops

Corrosion Challenges in Coastal Gulf Environments

Coastal industrial areas experience:

• salt-laden humidity
• chloride exposure
• high temperature cycles

Spring nuts manufactured in suitable materials preserve fastening integrity.

Seismic and Vibration Considerations

Although seismic activity is moderate, vibration loads from:

• rotating machinery
• pumps
• compressors

require fastening systems capable of resisting loosening.

Spring retention contributes to positional stability prior to bolt tightening.

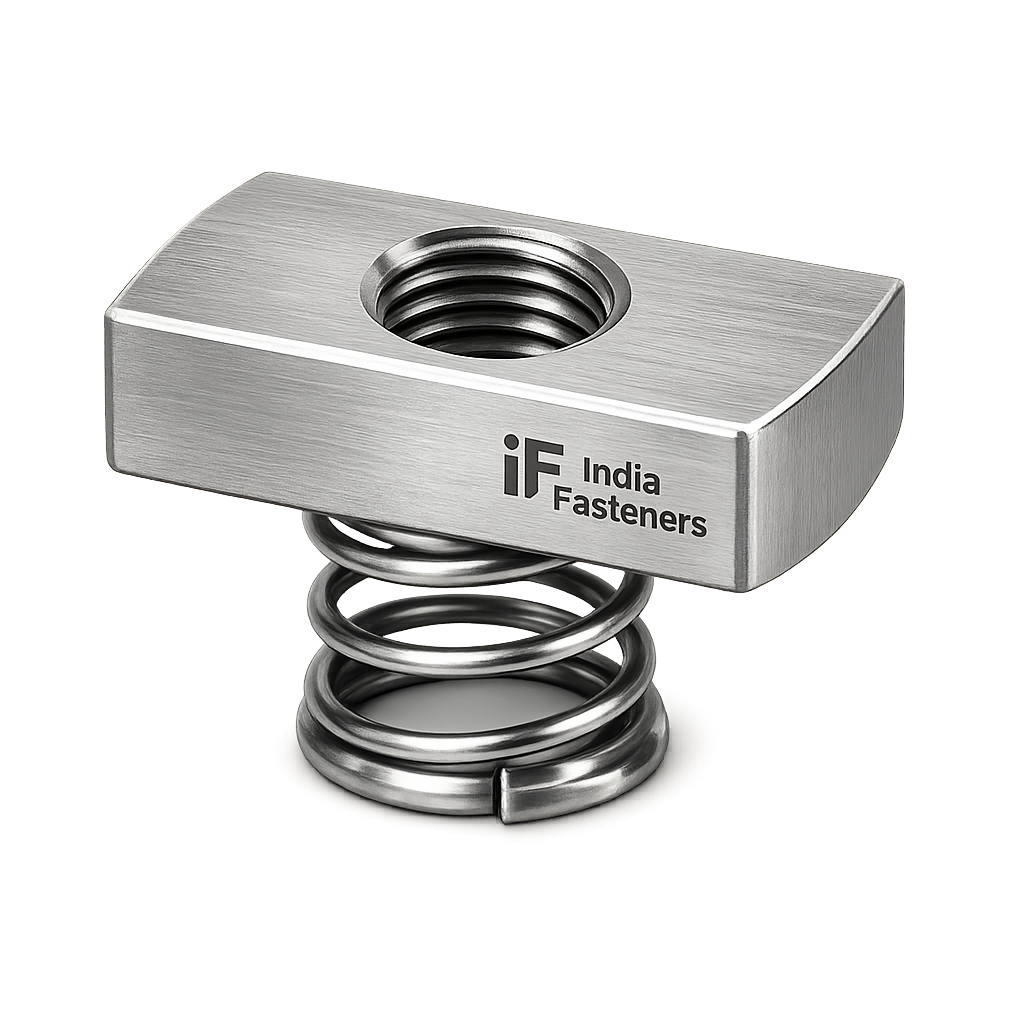

2. Technical Definition of Spring Nut

2.1 Engineering Definition

A Spring Nut is defined as:

A channel-mounted captive threaded nut incorporating an integrated spring retainer designed for rapid positioning and load-bearing fastening within strut channel support systems.

It is not merely a nut.

It is a mechanical positioning and load transfer component.

2.2 Functional Role Inside Strut Channel

Within a strut channel profile:

1. Spring nut inserts into the open channel slot.
2. Spring holds nut against channel lips.
3. Nut remains temporarily retained.
4. Bolt engagement rotates nut into locked orientation.
5. Load transfers into channel structure.

No secondary holding tool is required.

2.3 Spring Retention Mechanism

The spring performs three engineering functions:

• Maintains nut position before tightening
• Prevents falling during overhead installation
• Assists alignment during bolt insertion

The spring is not load-bearing.

Load is carried by:

• threaded engagement
• nut body
• channel lips

2.4 Rotation Locking Principle

During installation:

• Nut initially aligns parallel to channel.
• Bolt engagement applies torque.
• Nut rotates approximately 90°.
• Serrated or shaped edges engage channel lips.

This creates mechanical interlock preventing rotation.

2.5 Load Transfer Path

Load path follows:

Bolt → Nut Threads → Nut Body → Channel Lips → Channel Web → Support Structure

Understanding this path is essential for EPC engineering approval.

2.6 Standards Relevance

Spring nuts operate within established support and fastening standards:

• ISO metric thread standards
• DIN channel dimensional compatibility
• MSS SP-58 pipe support philosophy
• EPC mechanical support specifications

Although not governed by a single standalone international standard, spring nuts must align with system-level specifications.

2.7 Difference Between Similar Fastening Elements

Spring Nut

• Integrated retaining spring
• Tool-free positioning
• Designed for strut channels

Channel Nut (Without Spring)

• Requires manual holding
• Less efficient overhead installation

Cage Nut

• Designed for panel enclosures
• Used in sheet metal cabinets
• Not optimized for channel systems

• Permanent installation
• No adjustability
• Requires hot work inspection

Spring nuts support modular construction philosophy preferred in GCC EPC projects.

3. Mechanical Load Transfer & Support Theory

3.1 Engineering Logic of Spring Nut Performance

Spring nuts function within clamped joint mechanics rather than direct shear bearing alone.

Key engineering principles include:

• preload generation
• frictional resistance
• mechanical interlock

3.2 Shear Load Transfer

Shear forces arise from:

• pipe weight
• cable tray loads
• equipment mass

Shear resistance derives from:

1. Bolt shear capacity
2. Friction between connected surfaces
3. Channel lip bearing resistance

3.3 Tensile Loading Behaviour

Tensile loads occur in suspended supports.

Resistance depends on:

• bolt tensile strength
• thread engagement length
• nut material grade

Spring nuts must maintain full thread integrity under tensile loading.

3.4 Channel Lip Bearing Stress

Load concentration occurs at channel lips.

Engineering consideration includes:

• lip thickness
• nut contact area
• deformation resistance

Improper torque may deform channel lips and reduce capacity.

3.5 Frictional Resistance

Joint stability largely depends on friction generated by bolt preload.

Friction force:



Where:

• = friction coefficient
• = preload force

3.6 Bolt Preload Theory

Bolt preload equation:

Where:

• = applied torque
• = torque coefficient
• D = nominal bolt diameter

Correct preload prevents slip during vibration.

3.7 Dynamic Equipment Loads

Industrial environments introduce:

• vibration
• cyclic loading
• thermal movement

Spring nuts stabilize positioning during installation but long-term resistance depends on proper torque application.

3.8 Slip Resistance During Vibration

Slip resistance depends on:

• preload magnitude
• surface condition
• coating friction characteristics

Hot dip galvanized assemblies exhibit different friction behaviour compared to stainless steel systems.

3.9 Load Distribution Across Channel Lips

Load distribution is influenced by:

• nut geometry
• seating alignment
• torque uniformity

Even load transfer prevents localized channel deformation.

3.10 Safety Factor Concepts Used in EPC Installations

EPC contractors typically apply:

• Safety factor 3–5 for static supports
• Higher factors for dynamic equipment
• Conservative load rating assumptions

Spring nut selection must therefore align with system design calculations rather than maximum theoretical strength.

4. Applicable Materials — Spring Nut Engineering for GCC Applications

Spring nuts used within GCC mechanical support systems must be selected based on environmental exposure, structural loading, corrosion risk, and project specification requirements.

Material selection is not aesthetic or commercial; it is an engineering decision linked to service life, inspection expectations, and maintenance philosophy adopted by EPC contractors.

4.1 Environmental Conditions Governing Material Selection in GCC

Mechanical fastening components in the Middle East operate under combined stress factors:

• Ambient temperatures exceeding 50°C
• High ultraviolet exposure
• Coastal chloride environments
• Industrial chemical atmospheres
• Sand abrasion
• Humidity cycling between day and night
• Condensation within HVAC and tunnel systems

Spring nuts must therefore maintain:

• Thread integrity
• Coating adhesion
• Mechanical strength stability
• Resistance to corrosion-assisted cracking

4.2 Carbon Steel Spring Nuts

Typical Compatibility

• Bolt Grades: 4.6 / 8.8 metric systems
• Standard strut channel installations

Carbon steel provides the primary structural platform for most spring nuts due to predictable mechanical behavior.

Typical GCC Applications

• Indoor plant installations
• Cable management supports
• Equipment frames inside buildings
• Mechanical rooms
• Dry industrial environments

Engineering Characteristics

• High load carrying capacity
• Good thread formability
• Economical for large-scale projects
• Compatible with standard galvanizing systems

Carbon steel spring nuts require surface protection to prevent corrosion.

4.3 Stainless Steel 304 Spring Nuts

Application Logic

Used where corrosion risk exceeds electroplated protection capability but marine exposure remains moderate.

Typical Uses

• HVAC installations
• Food processing plants
• Water treatment facilities
• Indoor corrosive atmospheres

Engineering Advantages

• Stable corrosion resistance
• No coating dependency
• Reduced maintenance requirement
• Consistent torque behavior

4.4 Stainless Steel 316 Spring Nuts

316 stainless steel is selected when chloride exposure is significant.

Typical GCC Applications

• Offshore facilities
• Coastal refineries
• Desalination plants
• Marine terminals
• LNG jetty structures

Engineering Characteristics

• Superior resistance to chloride attack
• Reduced risk of pitting corrosion
• Improved long-term reliability in saline environments

Material selection is frequently dictated by project corrosion control specifications.

4.5 Electro-Galvanized Steel Spring Nuts

Electroplated zinc coatings provide controlled corrosion protection for interior environments.

Typical Uses

• Commercial buildings
• Airports
• Data centers
• Dry MEP installations

Engineering Properties

• Uniform coating thickness
• Smooth thread engagement
• Controlled torque characteristics

Not recommended for exposed outdoor coastal applications.

4.6 Hot Dip Galvanized (HDG) Spring Nuts

Hot dip galvanizing provides sacrificial corrosion protection through zinc metallurgical bonding.

Typical GCC Applications

• Outdoor pipe racks
• Power plant structures
• Infrastructure projects
• District cooling networks

Engineering Benefits

• Thick protective coating
• Long service life
• Resistance to mechanical damage

Thread tolerance compensation must be considered after galvanizing.

4.7 NACE Considerations

Where projects reference sour service or corrosion-controlled environments:

• Material compatibility with environmental cracking must be evaluated.
• Hardness control becomes critical.
• Coating systems must avoid hydrogen embrittlement risks.

Spring nuts intended for such environments must demonstrate controlled manufacturing discipline.

5. Material Comparison Table

Material	Coating Type	Corrosion Resistance Level	Load Capacity Category	Typical GCC Application
Carbon Steel	Plain / Oiled	Low	High	Indoor industrial use
Carbon Steel	Electro-Galvanized	Moderate	High	Indoor MEP systems
Carbon Steel	Hot Dip Galvanized	High	High	Outdoor infrastructure
Stainless Steel 304	Self-passivating	High	Medium–High	HVAC & water treatment
Stainless Steel 316	Self-passivating	Very High	Medium–High	Offshore & desalination

6. Heat Treatment & Metallurgical Control

Spring nuts are cold-formed precision fastening components. Their performance depends heavily on metallurgical stability rather than appearance.

6.1 Cold Forming Processes

6.5 Effects of Galvanizing on Mechanical Properties

Hot dip galvanizing exposes components to elevated temperature.

Engineering controls include:

• material grade selection
• thread allowance adjustment
• inspection of coating thickness

Galvanizing must not compromise thread engagement.

6.6 Coating Adhesion Verification

Coating adhesion ensures corrosion protection durability.

Verification methods include:

• bend testing
• adhesion inspection
• visual coating uniformity evaluation

6.7 Hardness Control Requirements

Spring nuts must balance:

• adequate strength
• resistance to brittleness
• thread durability

Excess hardness increases cracking risk; insufficient hardness reduces load capacity.

Hardness ranges are maintained through controlled forming and heat treatment discipline.

7. Manufacturing Process Flow — Documentation Level

Manufacturing discipline directly affects EPC acceptance. Spring nuts supplied to international projects require documented process control from raw material to shipment.

7.1 Raw Material Inspection

Incoming material verification includes:

• chemical composition confirmation
• mechanical property certification
• mill test certificate review
• dimensional verification of strip or bar

Traceability begins at this stage.

7.2 Steel Strip or Bar Traceability

Each material batch receives identification linking:

• heat number
• supplier source
• inspection records
• production lot

Traceability supports third-party audit readiness.

7.3 Cold Forming / Stamping

Progressive tooling shapes the nut body:

• controlled deformation
• dimensional repeatability
• consistent engagement geometry

Tool wear monitoring prevents dimensional drift.

7.4 Thread Tapping or Rolling

Thread formation stage includes:

• pitch verification
• thread profile inspection
• gauge acceptance testing

Thread accuracy directly affects load transfer.

7.5 Spring Manufacturing

Retention springs are produced separately through:

• spring steel wire forming
• controlled bending geometry
• elastic force verification

Spring characteristics must ensure retention without interfering with rotation locking.

7.6 Spring Assembly Insertion

Spring attachment must maintain:

• consistent retention force
• proper alignment
• secure positioning during installation

Automated or controlled assembly processes reduce variation.

7.7 Surface Treatment / Plating

Depending on specification:

• electro-galvanizing
• hot dip galvanizing
• stainless passivation

Process parameters are recorded for traceability.

7.8 Passivation for Stainless Grades

Passivation removes free iron contamination and restores chromium oxide protective layer.

Essential for corrosion resistance in chloride environments.

7.9 Dimensional Inspection

Inspection stages verify:

• nut width
• length
• thread alignment
• channel compatibility dimensions
• spring height tolerance

7.10 Spring Tension Verification

Retention spring force must be controlled within defined limits:

• sufficient holding force
• unrestricted rotation during tightening

Testing prevents installation difficulty in field conditions.

7.11 Load Testing

Sample testing confirms:

• thread stripping resistance
• proof load capability
• deformation limits

Testing aligns with mechanical support design expectations.

7.12 Marking & Batch Traceability

Identification may include:

• batch codes
• size marking
• manufacturing trace reference

Supports inspection agency verification.

7.13 Dimensional Tolerance Control

Critical tolerances include:

• thread concentricity
• channel lip engagement depth
• rotational clearance

Tolerance control ensures compatibility with standardized strut channels used globally.

7.14 Thread Accuracy Control

Threads are verified using:

• GO / NO-GO gauges
• pitch diameter inspection
• visual thread surface examination

Thread quality directly determines installation success and preload reliability.

8. Dimensional Reference Tables — Spring Nut Geometry

Spring nuts must maintain dimensional compatibility with internationally standardized strut channel systems used throughout GCC EPC projects. Mechanical support designers rely on predictable geometry to ensure load transfer integrity and installation interchangeability across vendors.

Dimensional accuracy directly influences:

• channel lip engagement
• rotation locking reliability
• bolt alignment
• preload development
• load distribution stability

Spring nut geometry is therefore treated as a controlled engineering interface rather than a simple threaded component.

8.1 Typical Strut Channel Compatibility

Spring nuts are manufactured to suit standard channel profiles commonly used across Middle East industrial installations.

Typical channel sizes include:

• 41 × 21 mm strut channel
• 41 × 41 mm strut channel
• 41 × 62 mm heavy-duty channel
• Back-to-back channel assemblies

Compatibility must ensure proper seating against channel lips without rocking or misalignment.

8.2 Dimensional Reference Table (Typical EPC Configuration)

Channel Size Compatibility	Nut Width (mm)	Nut Length (mm)	Thread Size	Spring Height (mm)	Channel Lip Engagement Depth (mm)
41×21 Channel	18–20	30–35	M6	6–8	2.5–3
41×21 Channel	18–20	30–35	M8	6–8	2.5–3
41×41 Channel	20–22	35–40	M10	8–10	3–4
41×41 Channel	20–24	40–45	M12	8–12	3–5
Heavy Duty Channel	24–28	45–55	M16	10–14	4–6

Values represent common industrial practice. Project specifications may vary.

8.3 Engineering Importance of Engagement Depth

Proper engagement depth ensures:

• rotation locking reliability
• resistance against pull-out forces
• uniform load distribution

Insufficient engagement leads to localized lip deformation under load.

8.4 Spring Height Considerations

Spring height must balance:

• retention capability
• ease of installation
• unobstructed rotation during tightening

Excessive spring force may prevent correct nut rotation; insufficient force may allow misalignment.

9. Load Rating Table (Mandatory Engineering Reference)

Load capacity of spring nuts depends on:

• thread size
• material grade
• channel thickness
• bolt grade
• installation torque

Values below represent conservative engineering reference levels used in EPC support design.

9.1 Recommended Load Ratings

Thread Size	Recommended Working Load (kN)	Ultimate Load Capacity (kN)	Typical Safety Factor Basis
M6	1.2	3.5	3
M8	2.5	7.5	3
M10	4.5	13	3
M12	7.5	22	3
M16	12	36	3

Actual performance depends on channel system and installation quality.

9.2 Static vs Dynamic Loading

Static Loading

• Pipe weight
• Cable tray support
• Equipment mounting frames

Governed primarily by bolt preload and friction.

Dynamic Loading

• Pumps
• Rotating machinery
• HVAC vibration
• Seismic movement

Requires increased safety factors and periodic inspection.

9.3 Installation Orientation Influence

Load performance varies depending on orientation:

• Vertical suspension — tensile dominated
• Side mounting — shear dominated
• Overhead supports — combined loading

Engineering evaluation must consider real load direction.

9.4 Channel Thickness Impact

Channel thickness significantly affects system capacity.

Thin channels may fail before spring nut capacity is reached. Support design must consider weakest component principle.

10. Bolt Torque Chart (Mandatory)

Correct torque application is essential for spring nut performance. The spring itself does not secure the joint — preload generated by bolt torque provides clamping force.

10.1 Metric Grade 8.8 Torque Reference

Bolt Size	Recommended Torque (Nm) Dry	Recommended Torque (Nm) Lubricated	Approx. Preload (kN)
M6	10	8	5
M8	25	20	12
M10	50	40	20
M12	85	70	30
M16	210	170	70

10.2 Lubricated vs Dry Torque

Lubrication reduces friction between threads.

Result:

• Lower torque required
• Higher achieved preload

Failure to adjust torque may lead to bolt overstressing.

10.3 Preload Percentage Logic

Typical EPC practice aims for:

• 70–75% of bolt proof load

This level:

• prevents joint separation
• minimizes fatigue failure
• reduces vibration loosening

11. Installation Mechanics Guide

Correct installation practices ensure that theoretical load capacity translates into real field performance.

11.1 Insertion Technique

1. Insert spring nut diagonally into channel slot.
2. Compress spring during insertion.
3. Position nut at required location.

Spring retains nut before bolt installation.

11.2 90° Rotation Locking Action

Upon bolt engagement:

• nut rotates perpendicular to slot
• shoulders engage channel lips
• rotation stops automatically

Proper locking must occur before torque application.

11.3 Seating Verification

Installers must verify:

• nut lies flat against channel lips
• no tilting or rocking
• full rotation achieved

Improper seating reduces load capacity.

11.4 Torque Tightening Sequence

Recommended sequence:

1. Hand-tighten bolt.
2. Confirm nut engagement.
3. Apply calibrated torque.
4. Re-check alignment.

11.5 Avoiding Cross-Threading

Common installation risks include:

• misaligned bolt entry
• debris inside threads
• forced tightening

Cross-threading reduces thread strength significantly.

11.6 Preventing Channel Lip Deformation

Over-torque may:

• bend channel lips
• reduce structural capacity
• compromise alignment

Torque tools must be calibrated.

11.7 EPC Installation Best Practices

• Use compatible bolt grade.
• Avoid mixing stainless and carbon steel without evaluation.
• Maintain clean channel surfaces.
• Inspect supports during commissioning.

12. Mechanical Property Table

Spring nuts must maintain mechanical compatibility with common bolt strength classes used in industrial supports.

Property	Typical Requirement
Proof Load Capability	Compatible with bolt Grade 8.8
Yield Strength Compatibility	≥ Bolt preload requirement
Hardness Range	Controlled to prevent brittleness
Thread Strength Class	ISO Metric Equivalent

Mechanical properties must prevent:

• thread stripping
• deformation under preload
• fatigue cracking

13. Corrosion Resistance Comparison Table

Finish Type	Indoor MEP	Outdoor Desert	Marine Exposure	Refinery Atmosphere	Chemical Exposure
Plain Steel	Limited	Not Recommended	Not Suitable	Poor	Poor
Electro-Galvanized	Good	Moderate	Limited	Moderate	Limited
Hot Dip Galvanized	Good	High	Moderate	Good	Moderate
Stainless Steel 304	Excellent	High	Moderate	High	Good
Stainless Steel 316	Excellent	Excellent	Excellent	Excellent	Excellent

Material selection must follow project corrosion control philosophy.

14. Inspection & Quality Assurance

GCC consultants and third-party inspection agencies apply stringent verification practices before approving fastening components.

Spring nuts must be inspection-ready.

14.1 Thread Gauge Inspection

Verification methods:

• GO gauge acceptance
• NO-GO rejection
• pitch accuracy confirmation

Ensures bolt compatibility across multinational supply chains.

14.2 Coating Thickness Testing

Typical inspection methods:

• magnetic thickness gauge
• visual uniformity inspection
• coating continuity evaluation

Required especially for galvanized products.

14.3 Salt Spray Testing

Accelerated corrosion testing evaluates coating durability.

Common evaluation objectives:

• coating adhesion
• corrosion initiation resistance
• comparative performance verification

14.4 Spring Retention Testing

Verification confirms:

• spring holding force
• installation ease
• repeatability of positioning

Retention must remain effective without restricting rotation.

14.5 Dimensional Verification

Inspection includes:

• nut body dimensions
• channel engagement geometry
• spring height tolerance
• thread concentricity

14.6 Batch Traceability System

Each production lot must be traceable to:

• raw material heat number
• manufacturing batch
• inspection records
• coating process data

Traceability is essential for EPC documentation acceptance.

14.7 EN 10204 3.1 Certification Readiness

Documentation capability may include:

• material test certificates
• inspection records
• manufacturing confirmation

Supports contractor material approval submissions.

14.8 Third-Party Inspection Acceptance

Spring nuts must remain compatible with inspection by internationally recognized agencies operating within GCC projects.

Typical inspection scope includes:

• visual examination
• dimensional checks
• documentation verification
• sample testing

Consultant expectations prioritize consistency, traceability, and repeatability over marketing claims.

15. Industries Served — Middle East Mechanical Support Applications

Spring nuts function as a standardized fastening interface within modular support systems widely deployed throughout Middle East infrastructure and industrial construction.

Their value within EPC projects is derived from installation efficiency, adjustability, and compatibility with internationally adopted strut channel systems.

15.1 Oil & Gas Facilities

Oil & Gas installations across GCC countries rely heavily on modular support construction to accommodate complex routing of mechanical and electrical systems.

Typical spring nut applications include:

• Pipe support assemblies
• Instrument tubing supports
• Cable tray suspension systems
• Local equipment mounting frames
• Analyzer and junction box supports
• Lighting and auxiliary supports

Engineering Drivers:

• Elimination of field welding inside hazardous zones
• Reduction of hot work permits
• Ability to modify supports during commissioning phase
• Maintainability during plant operation

Spring nuts allow EPC contractors to execute late-stage routing modifications without structural rework.

15.2 Refineries

Refinery environments introduce:

• High temperature variations
• Hydrocarbon exposure
• Dense structural layouts

Spring nuts are used for:

• Secondary steel supports
• Cable ladder installations
• Fire protection pipe supports
• Instrument stands
• Access platform utilities

Adjustability becomes critical when interference conflicts arise between piping, cable trays, and structural members.

15.3 Petrochemical Plants

Petrochemical facilities demand fastening systems capable of long-term stability within chemically aggressive atmospheres.

Typical installations:

• Polymer processing units
• Utility pipe racks
• Control system cabling
• HVAC and ventilation support assemblies

Material selection frequently favors galvanized or stainless spring nuts depending on corrosion exposure classification.

15.4 Power Generation Stations

Spring nuts support numerous auxiliary systems:

• Electrical cable management
• Bus duct supports
• Cooling water piping
• Control panels
• Instrumentation supports

Power plants emphasize maintainability and inspection accessibility, making modular channel supports the preferred engineering solution.

15.5 Desalination Plants

Desalination facilities represent one of the most aggressive corrosion environments in the GCC.

Spring nuts are applied within:

• Reverse osmosis piping supports
• Pump room installations
• Cable tray suspension
• Chemical dosing system supports

Stainless steel or hot dip galvanized spring nuts are commonly selected based on corrosion control specifications.

15.6 Metro Rail & Infrastructure Projects

Transportation infrastructure utilizes extensive suspended systems.

Spring nut applications include:

• Tunnel cable supports
• Signaling equipment mounts
• Ventilation duct supports
• Emergency lighting infrastructure

Engineering advantages include rapid installation within confined construction zones.

15.7 Commercial High-Rise Developments

Large commercial towers in the GCC adopt prefabricated MEP systems to accelerate construction timelines.

Spring nuts are used for:

• HVAC duct supports
• Plumbing networks
• Fire sprinkler installations
• Electrical containment systems

Adjustability reduces installation conflicts between trades.

15.8 Data Centers

Modern data centers require highly organized cable management systems.

Spring nuts enable:

• scalable cable tray expansion
• precise equipment alignment
• non-permanent installation methods

Future expansion capability is a primary design consideration.

15.9 District Cooling Systems

District cooling networks involve large-diameter insulated piping systems requiring adjustable support assemblies.

Spring nuts facilitate:

• elevation adjustment
• thermal movement accommodation
• maintenance access

16. Export & GCC Supply Capability

International EPC contractors evaluate fastening suppliers based not only on product performance but also logistical reliability and documentation readiness.

India Fasteners operates as a manufacturing exporter aligned with project supply expectations.

16.1 Export Regions Served

Project supply capability covers:

• Saudi Arabia
• United Arab Emirates
• Qatar
• Oman
• Kuwait
• Bahrain

Supply is structured to support EPC contractors, mechanical support fabricators, and approved project vendors.

16.2 Export Packaging Standards

Packaging is designed for extended sea transport and Gulf climate exposure.

Typical controls include:

• moisture-protected packaging
• corrosion-preventive internal wrapping
• reinforced cartons or pallets
• containerized shipment segregation by size and batch

Packaging must prevent coating damage during transport.

16.3 Project Documentation Package

Typical export documentation prepared for EPC submission may include:

• Commercial invoice
• Packing list
• Material test certificates
• Dimensional confirmation records
• Batch traceability identification
• Country of origin declaration

Documentation alignment supports contractor material approval workflows.

16.4 Inspection Release Documentation

Where required, shipment readiness may include:

• inspection notification
• inspection release note
• quantity verification
• packaging inspection confirmation

Supports third-party inspection processes prior to shipment.

16.5 Batch Traceability System

Each shipment maintains traceability linking:

• manufacturing batch
• material source
• inspection records
• shipment documentation

Traceability enables field verification if requested by consultants or inspection agencies.

16.6 Container Loading Discipline

Container loading procedures consider:

• weight distribution
• protection against movement
• coating preservation
• identification visibility

Proper loading prevents mechanical damage during maritime transport.

16.7 Climate Protection Packaging

GCC shipping conditions involve:

• high humidity during sea transit
• temperature cycling
• condensation risk inside containers

Preventive measures include desiccant usage and sealed packaging configurations.

17. Procurement & Installation Engineering View

Spring nuts are typically evaluated during EPC vendor approval processes under mechanical support system packages rather than as standalone hardware items.

Understanding procurement expectations is essential for project acceptance.

17.1 Material Approval Process

Typical contractor workflow:

1. Submission of technical data
2. Review against project specification
3. Consultant evaluation
4. Conditional approval
5. Inspection acceptance
6. Project release

Consistency between documentation and supplied product is critical.

17.2 Vendor Documentation Expectations

Procurement teams typically review:

• dimensional data
• material grades
• coating specifications
• inspection capability
• traceability systems

Incomplete documentation commonly delays approval.

17.3 Support System Compatibility

EPC engineers verify compatibility with:

• standard strut channel dimensions
• metric bolt systems
• existing support designs
• installation tools used on site

Spring nuts must integrate without modification to approved support layouts.

17.4 Installation Productivity Advantages

From contractor perspective, spring nuts provide:

• reduced installation labor
• elimination of on-site fabrication
• faster overhead work
• simplified alignment adjustments

Installation efficiency directly affects project schedule performance.

17.5 Maintenance Replacement Capability

Operational facilities prioritize maintainability.

Spring nuts allow:

• removal of individual supports
• repositioning of equipment
• expansion without structural modification

Maintenance teams avoid cutting or welding operations.

17.6 Storage Conditions for Gulf Climate

Recommended storage practices:

• keep dry and ventilated
• avoid direct ground contact
• maintain original packaging until use
• separate stainless and carbon steel items

Proper storage prevents premature corrosion before installation.

17.7 Field Inspection Checklist (Typical EPC Practice)

Site inspectors commonly verify:

• correct thread size
• coating condition
• rotation locking engagement
• torque application
• compatibility with channel system
• absence of deformation

Inspection focuses on installation quality rather than visual appearance.

18. Custom Engineering Capabilities

Large EPC projects frequently require configuration adjustments beyond standard catalog dimensions.

Manufacturing flexibility supports project-specific engineering requirements.

18.1 Custom Thread Sizes

Possible adaptations include:

• non-standard metric threads
• project-specific bolt compatibility
• heavy-load applications

18.2 Heavy-Duty Spring Nuts

Enhanced designs may include:

• increased body thickness
• extended engagement surfaces
• higher load applications

Used for pipe rack or equipment support structures.

18.3 Short Body and Long Body Designs

Different channel geometries require varied nut lengths.

Options include:

• compact body for confined installations
• extended body for heavy channel profiles

18.4 High Corrosion Protection Systems

Project specifications may require:

• specialized galvanizing thickness
• stainless steel supply
• duplex or enhanced coating systems

Selection depends on corrosion classification documents.

18.5 Stainless Project Supply

Projects located in coastal or marine environments frequently specify stainless spring nuts across entire mechanical support packages.

Manufacturing control ensures:

• passivation compliance
• material segregation
• contamination prevention

18.6 Pre-Assembled Hardware Kits

For large projects, spring nuts may be supplied within pre-engineered installation kits containing:

• matching bolts
• washers
• compatible support hardware

This reduces site material handling complexity.

18.7 Project-Specific Marking & Labeling

Identification systems may include:

• project codes
• item numbers
• batch references
• installation package labeling

Supports warehouse control and installation tracking.

Final Engineering Perspective

Within modern GCC EPC construction, the spring nut is not treated as a minor fastening accessory. It is a functional mechanical interface enabling modular support philosophy adopted across oil & gas, infrastructure, power, and commercial developments.

A technically suitable manufacturer must demonstrate:

• understanding of load transfer mechanics
• compatibility with standardized strut channel systems
• corrosion engineering awareness for Gulf environments
• controlled manufacturing discipline
• inspection and traceability readiness
• export documentation capability aligned with EPC workflows

When evaluated from consultant, contractor, and inspection authority perspectives, spring nuts supplied under controlled engineering and documentation practices become fully compatible with international project execution requirements.
