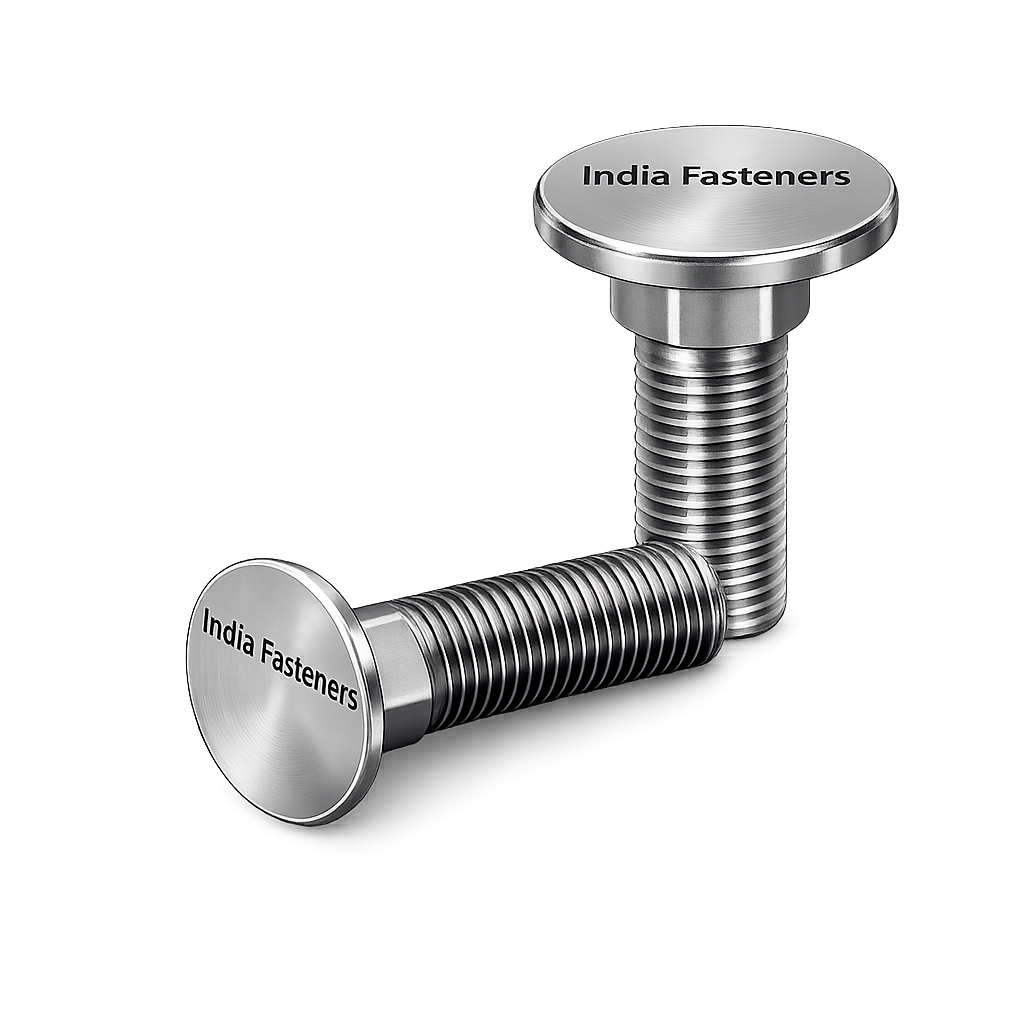

Elevator Bolts

Elevator Bolts in GCC Bulk Material Handling Infrastructure

1. Regional Industry Context (Middle East Focus)

Bulk material handling systems form a critical mechanical backbone across large-scale industrial infrastructure in the Gulf Cooperation Council (GCC) region. Within these systems, bucket elevators are deployed extensively for vertical transport of granular, powdered, and abrasive materials. Elevator bolts function as a primary fastening interface between conveyor belts and buckets, directly influencing operational reliability, maintenance cycles, and safety compliance.

1.1 Cement Industry (Saudi Arabia, UAE)

Cement production facilities across Saudi Arabia and the UAE operate continuous-process plants with high throughput requirements. Bucket elevators are used for:

• Raw meal transport
• Clinker handling
• Cement powder elevation

Operating conditions include:

• High temperatures (up to 200–300°C in clinker zones)
• Severe abrasion due to limestone and clinker particles
• Dust-laden environments affecting thread integrity and tightening reliability

Elevator bolts in these systems must:

• Maintain clamping force under thermal expansion
• Resist abrasive wear at the head interface
• Prevent pull-through under dynamic loading

1.2 Mining & Aggregate Processing Plants

Mining and aggregate facilities across Oman, Saudi Arabia, and Qatar utilize bucket elevators for:

• Crushed stone transport
• Sand and mineral handling
• Screening and grading systems

These systems introduce:

• High impact loading during material discharge
• Irregular particle sizes causing localized stress
• Continuous vibration and cyclic loading

Elevator bolts must therefore exhibit:

• High shear resistance
• Fatigue durability
• Secure anti-rotation characteristics

1.3 Fertilizer & Chemical Plants

Material handling in fertilizer plants involves:

• Urea granules
• Phosphate compounds
• Chemical powders

Operating risks include:

• Corrosive atmospheres
• Hygroscopic materials causing moisture retention
• Chemical exposure affecting coating systems

Fasteners must provide:

• Corrosion resistance (coated or stainless variants)
• Stable preload under chemical exposure
• Resistance to stress corrosion cracking

1.4 Grain Storage & Processing Facilities

Grain elevators across GCC ports and inland storage facilities rely on bucket systems for:

• Wheat, corn, and rice handling
• Feed processing plants

Challenges include:

• Dust explosion risk (requiring low-profile fastening)
• Continuous operation cycles
• Hygiene considerations

Elevator bolts are selected for:

• Smooth head profile to minimize product accumulation
• Secure fastening to prevent loosening
• Compatibility with belt materials (rubber, PVC)

1.5 Power Plants (Coal & Ash Handling Systems)

In thermal power plants, bucket elevators handle:

• Coal feed systems
• Fly ash removal
• Bottom ash transport

These environments involve:

• High-temperature exposure
• Abrasive ash particles
• Corrosive flue gas residues

Fasteners must maintain:

• Structural integrity under heat
• Resistance to abrasive wear
• Stable preload under vibration

1.6 Ports & Bulk Cargo Terminals

Bulk terminals across UAE and Saudi Arabia manage:

• Cement
• Fertilizers
• Grain
• Minerals

Elevator systems operate under:

• Marine atmospheric conditions
• Continuous high-load cycles
• Exposure to humidity and salt

Elevator bolts must address:

• Corrosion resistance (galvanized or stainless steel)
• Long-term durability under cyclic loading
• Ease of maintenance and replacement

1.7 Operational Characteristics of Bucket Elevators

Bucket elevators in GCC applications operate under:

• Continuous duty cycles (24/7 operation)
• High-speed belt movement
• Repetitive loading and unloading cycles

Mechanical demands include:

• Repeated impact loading at discharge points
• Belt tension forces acting on bolt assemblies
• Dynamic imbalance and vibration

Environmental conditions include:

• Ambient temperatures exceeding 50°C
• Dust ingress affecting threads and seating surfaces
• Limited shutdown windows for maintenance

1.8 Reliability Requirements in GCC Mega Projects

Large EPC projects in the Middle East impose strict mechanical reliability requirements:

• Zero unplanned downtime tolerance in process-critical systems
• Defined maintenance intervals aligned with plant shutdown schedules
• Compliance with third-party inspection protocols

Elevator bolts must therefore ensure:

• Consistent dimensional accuracy
• Verified mechanical properties
• Traceable manufacturing batches
• Predictable performance under load

Failure of a single bolt can lead to:

• Bucket detachment
• Belt damage
• System shutdown

This elevates the fastening system from a commodity component to a critical engineered element.

2. Technical Definition of Elevator Bolt

2.1 Functional Definition

An elevator bolt is a specialized fastening component designed to secure buckets to conveyor belts in vertical material handling systems. It differs from conventional fasteners through its geometry, load distribution capability, and anti-rotation design.

Primary characteristics include:

• Large-diameter flat head
• Low-profile design
• Square neck or ribbed shank
• Threaded end for nut engagement

The design objective is to:

• Distribute load across a wider belt surface
• Prevent localized stress concentration
• Maintain secure fastening under dynamic conditions

2.2 Structural Features

a. Head Design

The head is:

• Wide and flat (or slightly domed depending on design)
• Designed to sit flush against the belt surface

Functions:

• Prevents pull-through of the belt
• Distributes clamping force over a larger area
• Minimizes belt damage

Variants include:

• Flat head
• Countersunk head
• Domed (mushroom) head

b. Neck Design

The neck section typically includes:

• Square neck
• Ribbed or serrated neck

Functions:

• Prevents bolt rotation during tightening
• Ensures proper torque transfer
• Maintains alignment within the belt hole

c. Threaded Portion

• Metric threads (ISO standard)
• Rolled threads for improved fatigue resistance

Used with:

• Hex nuts
• Lock nuts
• Washers (flat or specially designed bucket washers)

2.3 Relevant Standards

Elevator bolts are commonly manufactured in accordance with:

• DIN 15237 (bucket elevator bolts standard)
• ISO metric thread standards
• EN ISO mechanical property standards

DIN 15237 defines:

• Head dimensions
• Neck configuration
• Thread specifications
• Dimensional tolerances

These standards ensure:

• Interchangeability across conveyor systems
• Compatibility with OEM equipment
• Compliance with EPC project requirements

2.4 Difference from Standard Hex Bolts

Parameter	Elevator Bolt	Standard Hex Bolt
Head Type	Flat / wide	Hexagonal
Load Distribution	High	Localized
Anti-Rotation	Built-in (square neck)	External holding required
Application	Conveyor buckets	General fastening
Profile	Low-profile	Protruding head

Elevator bolts are specifically engineered for:

• Surface contact with belts
• Dynamic load environments
• Repetitive mechanical stress

Standard bolts are not suitable due to:

• Insufficient load distribution
• Risk of belt damage
• Increased loosening under vibration

2.5 Nut and Washer Combinations

Typical assembly includes:

• Hex nut (standard or lock type)
• Flat washer or specialized bucket washer

Functions:

• Distributes load on bucket side
• Prevents deformation of bucket wall
• Enhances clamping stability

Locking options:

• Nylon insert lock nuts
• Double nutting
• Thread-locking compounds (project-dependent)

3. Load Distribution & Fastening Mechanics

Elevator bolts operate under combined loading conditions. Understanding load behavior is essential for correct selection and installation.

3.1 Load Types Acting on Elevator Bolts

a. Shear Load

Occurs due to:

• Weight of material in buckets
• Gravitational force during vertical lifting

Acts perpendicular to bolt axis.

b. Tensile Load

Generated from:

• Belt tension
• Clamping force between bucket and belt

Acts along the bolt axis.

c. Impact Load

Occurs during:

• Material loading into buckets
• Discharge at elevator head

Creates transient high-stress conditions.

d. Cyclic Load

Due to:

• Continuous rotation
• Repeated loading and unloading

Leads to fatigue over time.

3.2 Shear Stress Calculation

Shear stress in a bolt is calculated as:

τ = F / A

Where:

• τ = shear stress
• F = applied force
• A = cross-sectional area

In bucket elevators:

• Shear force is distributed across multiple bolts per bucket
• Uneven load distribution may occur due to misalignment

3.3 Tensile Stress Calculation

Tensile stress is calculated as:

Where:

• σ = tensile stress
• F = axial load
• A = tensile stress area of thread

Tensile loading is influenced by:

• Belt tension
• Bolt preload

3.4 Clamping Force and Preload

Clamping force ensures:

• Secure attachment of bucket to belt
• Resistance to slip and movement

Preload is generated during tightening and is critical for:

• Maintaining joint integrity
• Preventing loosening under vibration

Preload estimation:

Where:

• Fₚ = preload force
• T = applied torque
• K = torque coefficient
• d = nominal diameter

3.5 Load Distribution Across Multiple Bolts

Each bucket is typically secured with multiple bolts. Load sharing depends on:

• Bolt spacing
• Installation accuracy
• Uniform torque application

Non-uniform tightening can result in:

• Overloading of individual bolts
• Premature failure

3.6 Failure Modes in Elevator Bolt Systems

a. Pull-Through Failure

Occurs when:

• Head diameter is insufficient
• Belt material weakens over time

Result:

• Bolt head passes through belt
• Bucket detachment

b. Shear Failure

Occurs due to:

• Excessive load
• Material inadequacy

Result:

• Bolt fracture

c. Loosening

Caused by:

• Vibration
• Improper preload

Result:

• Loss of clamping force
• Progressive joint failure

d. Fatigue Failure

Occurs under:

• Repeated cyclic loading

Result:

• Crack initiation and propagation

3.7 Safety Factors in GCC Industrial Systems

Typical safety considerations include:

• Conservative load assumptions
• Multiple bolt redundancy per bucket
• Material selection based on worst-case conditions

Design factors consider:

• High ambient temperatures
• Abrasive material handling
• Continuous operation cycles

Safety factors are applied to:

• Shear strength
• Tensile strength
• Fatigue life

3.8 Engineering Considerations for Reliable Performance

To ensure long-term performance:

• Correct bolt grade selection is required
• Proper torque application must be maintained
• Regular inspection intervals should be defined
• Replacement schedules must align with plant shutdowns

Installation accuracy directly affects:

System reliability

Load distribution

Bolt life

Material Engineering, Standards & Manufacturing Discipline

4. Applicable Materials (Mapped to GCC Use)

Material selection for elevator bolts is directly linked to operational loading, environmental exposure, and lifecycle expectations within GCC bulk material handling systems. Selection is not based solely on strength but on a combination of mechanical performance, corrosion resistance, abrasion resistance, and temperature stability.

4.1 Carbon Steel (Low & Medium Carbon)

a. Low Carbon Steel (Typical: ≤0.25% C)

Characteristics:

• Moderate strength
• High ductility
• Good formability for cold forging
• Lower hardness

Mechanical behavior:

• Suitable for light to moderate load applications
• Good resistance to brittle fracture
• Limited wear resistance

Typical applications in GCC:

• Grain handling systems
• Light-duty conveyor elevators
• Non-abrasive material transport

Limitations:

• Susceptible to corrosion in humid or marine environments
• Not suitable for high-impact or abrasive conditions

b. Medium Carbon Steel (0.25%–0.55% C)

Characteristics:

• Higher strength than low carbon steel
• Improved hardness after heat treatment
• Balanced ductility and toughness

Mechanical behavior:

• Suitable for moderate to high load conditions
• Improved resistance to wear and deformation

Typical applications:

• Cement plants (moderate zones)
• Aggregate handling systems
• General industrial elevators

Limitations:

• Requires surface protection in corrosive environments
• Heat treatment must be controlled to avoid brittleness

4.2 Alloy Steel (High Strength Applications)

Typical grades include:

• Chromium-based steels
• Chromium-molybdenum alloys

Characteristics:

• High tensile strength
• Improved fatigue resistance
• Enhanced wear resistance

Mechanical performance:

• Suitable for high-load and high-impact applications
• Maintains integrity under cyclic loading

Typical GCC applications:

• Clinker transport systems in cement plants
• Mining and heavy aggregate processing
• High-capacity bucket elevators

Advantages:

• Superior strength-to-weight ratio
• Better fatigue life

Considerations:

• Requires controlled heat treatment
• Higher cost relative to carbon steel
• Requires coating for corrosion protection

4.3 Stainless Steel (SS304 / SS316)

Characteristics:

• Austenitic structure
• Good corrosion resistance
• Moderate strength

a. SS304

Applications:

• Food-grade grain systems
• Non-chloride environments
• Fertilizer handling (limited exposure)

b. SS316

Characteristics:

• Molybdenum addition improves corrosion resistance
• Superior resistance to chlorides

Applications in GCC:

• Coastal and marine environments (ports, UAE terminals)
• Chemical plants
• High-humidity installations

Advantages:

• No additional coating required
• Long-term corrosion resistance

Limitations:

• Lower strength compared to alloy steels
• Risk of galling during tightening
• Higher material cost

4.4 Surface-Hardened Steels

Surface hardening processes are applied to:

• Improve wear resistance at the bolt head
• Reduce deformation under abrasive contact

Characteristics:

• Hard outer layer
• Tough and ductile core

Applications:

• Cement clinker systems
• Ash handling
• Abrasive bulk material transport

4.5 Coated Fasteners

Coatings are critical in GCC environments due to:

• Marine exposure
• High humidity in coastal regions
• Chemical exposure

Common coating systems:

a. Zinc Plating

• Electroplated coating
• Provides basic corrosion resistance
• Suitable for indoor or dry conditions

b. Hot Dip Galvanizing (HDG)

• Thick zinc coating
• Superior corrosion protection
• Suitable for outdoor and marine environments

c. Specialized Coatings

• PTFE-based coatings
• Anti-corrosion chemical coatings

Applications:

• Fertilizer plants
• Chemical processing units
• Coastal installations

4.6 Standards Mapping

Elevator bolt materials and mechanical properties are aligned with international standards used in GCC project specifications.

Primary Standard

DIN 15237

Defines:

• Geometry
• Head dimensions
• Neck configuration
• Application-specific design

Mechanical Property Standards

ISO 898-1

Defines:

• Mechanical properties of carbon and alloy steel fasteners
• Strength classes (e.g., 4.6, 5.8, 8.8, 10.9)

Reference Standards (Contextual)

ASTM A307

• Low carbon steel bolts
• General-purpose applications

ASTM A325 (Reference Context)

• High-strength structural bolts
• Used as benchmark for high-strength performance

EN ISO Standards

Applicable for:

• Thread dimensions
• Mechanical testing
• Quality assurance

4.7 Material Selection Mapping (GCC Conditions)

Material Type	Load Capacity	Corrosion Resistance	Temperature Suitability	Abrasion Resistance	Typical GCC Application
Low Carbon Steel	Low–Moderate	Low	Moderate	Low	Grain systems
Medium Carbon Steel	Moderate	Moderate (coated)	Moderate	Moderate	Cement plants
Alloy Steel	High	Moderate (coated)	High	High	Mining, clinker handling
SS304	Moderate	Good	Moderate	Low	Food-grade systems
SS316	Moderate	High	Moderate	Low	Marine, chemical plants
Surface-Hardened Steel	High	Moderate	High	Very High	Ash, clinker systems

5. Material Comparison Table (Mandatory)

Grade / Material	Yield Strength (MPa)	Tensile Strength (MPa)	Hardness (HB/HRC)	Corrosion Resistance	Typical GCC Application
ISO 4.6 (Low Carbon)	~240	~400	120–180 HB	Low	Grain elevators
ISO 5.8 (Medium Carbon)	~400	~500	150–200 HB	Moderate (coated)	Cement plants
ISO 8.8 (Alloy Steel)	~640	~800	22–32 HRC	Moderate (coated)	Mining systems
ISO 10.9 (Alloy Steel)	~900	~1040	32–39 HRC	Moderate (coated)	Heavy-duty elevators
SS304	~210	~520	~150–200 HB	Good	Food & light chemical
SS316	~220	~530	~150–200 HB	High	Marine & chemical

6. Heat Treatment & Metallurgical Control

Heat treatment defines the mechanical performance of elevator bolts, particularly for medium carbon and alloy steel variants.

6.1 Case Hardening

Process:

• Surface enriched with carbon
• Followed by quenching

Result:

• Hard outer surface
• Tough core

Benefits:

• Improved wear resistance at head
• Reduced deformation under load

Applications:

• Abrasive material handling systems

6.2 Quenching & Tempering

Process:

1. Heating to austenitizing temperature
2. Rapid cooling (quenching)
3. Reheating (tempering)

Result:

• Increased strength
• Controlled toughness

Used for:

• High-strength bolts (ISO 8.8, 10.9)

6.3 Surface Hardening vs Core Ductility

Engineering requirement:

• Hard surface for wear resistance
• Ductile core to absorb shock loads

Improper balance may lead to:

• Brittle fracture (over-hardening)
• Excessive deformation (under-hardening)

6.4 Galvanizing Effects on Mechanical Properties

Hot dip galvanizing introduces:

• Elevated temperature exposure (~450°C)
• Potential reduction in mechanical strength for high-grade bolts

Engineering considerations:

• Avoid HDG for very high-strength bolts (10.9+) unless controlled
• Re-evaluate mechanical properties post-coating

6.5 Hydrogen Embrittlement Considerations

Occurs when:

• Hydrogen enters steel during plating or pickling

Risks:

• Delayed brittle failure
• Sudden fracture under load

Preventive measures:

• Baking after electroplating
• Controlled plating processes
• Use of lower-strength grades when appropriate

7. Manufacturing Process Flow (Documentation Level)

Elevator bolt manufacturing must follow a controlled, traceable process aligned with EPC documentation expectations.

7.1 Raw Material Inspection

Includes:

• Chemical composition verification
• Mechanical property certification
• Surface defect inspection

Documentation:

• Mill test certificates
• Heat number traceability

7.2 Wire Rod Selection

Criteria:

• Correct diameter
• Uniform microstructure
• Compliance with specified grade

7.3 Forging Process

a. Cold Forging

• Used for smaller diameters
• Produces high dimensional accuracy
• Improves grain flow

b. Hot Forging

• Used for larger sizes
• Allows complex head formation

7.4 Head Formation

Critical step:

• Formation of wide, flat head

Control parameters:

• Head diameter tolerance
• Flatness
• Surface finish

Importance:

• Directly affects load distribution on belt

7.5 Neck Formation (Anti-Rotation Feature)

Methods:

• Square neck forming
• Ribbed/serrated shaping

Requirements:

• Accurate geometry
• Proper engagement with belt hole

7.6 Thread Rolling

Preferred over cutting due to:

• Improved fatigue strength
• Better surface finish
• Work hardening effect

Control parameters:

• Thread pitch accuracy
• Major/minor diameter tolerance

7.7 Heat Treatment

Applied based on grade:

• Controlled furnace cycles
• Temperature monitoring
• Cooling rate control

Verification:

• Hardness testing
• Microstructure evaluation

7.8 Surface Coating

Processes include:

• Zinc plating
• Hot dip galvanizing
• Specialized coatings

Control:

• Coating thickness measurement
• Adhesion testing

7.9 Final Inspection

Includes:

• Dimensional checks
• Mechanical testing
• Visual inspection

Tools:

• Vernier calipers
• Thread gauges
• Hardness testers

7.10 Marking & Traceability

Requirements:

• Batch identification
• Heat number traceability
• Manufacturer identification (if required by project)

Supports:

• Third-party inspection
• Project documentation compliance

7.11 Dimensional Tolerances & Quality Control

Critical parameters:

• Head diameter and thickness
• Shank diameter
• Thread accuracy
• Straightness

Head flatness is particularly critical to:

• Prevent belt damage
• Ensure uniform load distribution

Thread accuracy ensures:

• Proper nut engagement
• Reliable preload generation

7.12 Documentation for EPC Compliance

Manufacturing must support:

• EN 10204 3.1 certification
• Inspection reports
• Material traceability records
• Coating test reports

These documents are required for:

• Saudi Aramco-approved vendor evaluation
• ADNOC and QatarEnergy project submissions
• Third-party inspection validation

8. Dimensional Reference Tables (DIN 15237 Based)

Elevator bolts are manufactured in standardized dimensions to ensure compatibility with conveyor belts, buckets, and OEM equipment. The following reference aligns with DIN 15237 geometry requirements, with typical industrial ranges used in GCC projects.

8.1 Standard Metric Dimensions

Bolt Diameter (d)	Bolt Length (L) (mm)	Head Diameter (dk) (mm)	Head Thickness (k) (mm)	Neck Type	Thread Length (b) (mm)
M6	20 – 80	16 – 20	3.5 – 4.5	Square / Ribbed	12 – 24
M8	25 – 100	20 – 26	4.0 – 5.5	Square / Ribbed	16 – 32
M10	30 – 120	26 – 32	5.0 – 6.5	Square / Ribbed	20 – 40
M12	40 – 150	32 – 40	6.0 – 8.0	Square / Ribbed	25 – 50
M16	50 – 200	40 – 55	8.0 – 10.0	Square / Ribbed	30 – 65
M20	60 – 250	55 – 70	10.0 – 12.0	Square / Ribbed	35 – 80

8.2 Engineering Notes on Dimensions

• Head Diameter (dk):
  Determines load distribution across belt surface. Larger diameters reduce risk of pull-through.
• Head Thickness (k):
  Must be sufficient to resist deformation under clamping force.
• Neck Geometry:
  Ensures anti-rotation during tightening; must match belt hole configuration.
• Thread Length (b):
  Must accommodate bucket thickness + washer + nut engagement.

9. Mechanical Strength Table

Mechanical performance is defined based on ISO strength classes and material grade.

9.1 Strength Properties

Bolt Size	Strength Class	Proof Load (kN)	Tensile Strength (MPa)	Shear Strength (Approx. MPa)	Hardness Range
M6	4.6	5.2	400	240	120–180 HB
M8	5.8	12.0	500	300	150–200 HB
M10	8.8	23.0	800	480	22–32 HRC
M12	8.8	33.0	800	480	22–32 HRC
M16	10.9	75.0	1040	620	32–39 HRC
M20	10.9	117.0	1040	620	32–39 HRC

9.2 Engineering Interpretation

• Shear strength is typically approximated as 0.6 × tensile strength
• Proof load defines maximum load without permanent deformation
• Hardness range correlates with wear resistance and fatigue life

10. Bolt Torque & Tightening Guidelines

Proper torque application is critical to achieve required preload without damaging the conveyor belt.

10.1 Recommended Torque Values (Indicative)

Bolt Size	Strength Class	Torque (Nm) – Dry	Torque (Nm) – Lubricated	Estimated Preload (% of Proof Load)
M6	4.6	8	6	60–70%
M8	5.8	20	15	65–75%
M10	8.8	50	38	70–80%
M12	8.8	85	65	70–80%
M16	10.9	210	160	75–85%
M20	10.9	410	310	75–85%

10.2 Engineering Considerations

a. Lubrication Effect

• Reduces friction coefficient
• Increases preload for same torque
• Requires torque adjustment to prevent over-tightening

b. Conveyor Belt Protection

Excessive torque may result in:

• Belt compression damage
• Material cracking (rubber/PVC belts)
• Reduced service life

c. Tightening Sequence

Recommended method:

1. Insert all bolts loosely
2. Apply initial tightening (50% torque)
3. Final tightening in cross pattern
4. Re-check after initial operation cycle

d. Preload Control

Uniform preload ensures:

• Even load distribution
• Reduced fatigue risk
• Prevention of bolt loosening

11. Load Calculation Guide (Mandatory)

Accurate load calculation is required for selecting bolt size, grade, and quantity.

11.1 Bucket Load Calculation

Total load per bucket:

Where:

• = material weight
• = total load
• = bucket weight

11.2 Material Weight Estimation

Where:

• = material density (kg/m³)
• V = bucket volume (m³)

11.3 Load per Bolt

If a bucket is secured with n bolts:

Where:

• = load per bolt

11.4 Dynamic Load Factor

Due to impact and vibration:

Where:

• = dynamic factor (typically 1.5 – 3.0 in GCC systems)

11.5 Sample Engineering Calculation

Given:

• Bucket volume = 0.01 m³
• Material density (cement) = 1500 kg/m³
• Bucket weight = 2 kg
• Number of bolts = 4
• Dynamic factor = 2

Step 1: Material Weight

= 1500 × 0.01 = 15 kg

Step 2: Total Load

= 15 + 2 = 17 kg

Step 3: Load per Bolt

= 17 / 4 = 4.25 kg

Step 4: Dynamic Load

= 4.25 × 2 = 8.5 kg per bolt

11.6 Engineering Interpretation

• Actual design must consider safety factor ≥ 3
• Selection should be based on worst-case loading conditions
• Uneven load distribution must be accounted for

12. Wear & Abrasion Resistance Table

Elevator bolts are subjected to continuous abrasion, especially at the head interface.

Material Type	Wear Resistance	Surface Hardness	Performance in Abrasive Systems	Typical Application
Standard Carbon Steel	Low	Low	Rapid wear	Grain systems
Medium Carbon Steel	Moderate	Moderate	Acceptable	Cement plants
Hardened Steel	High	High	Excellent	Clinker handling
Coated Steel	Moderate	Moderate	Improved corrosion, limited wear benefit	Chemical plants
Stainless Steel	Low	Low	Not suitable for high abrasion	Food & marine

12.1 Engineering Notes

• Surface hardening significantly improves head life
• Abrasion resistance directly affects maintenance intervals
• Material selection must match conveyed material properties

13. Corrosion Resistance Comparison

Corrosion performance varies significantly based on material and coating.

Material / Coating	Humidity Resistance	Marine Exposure	Chemical Exposure	Dust Environment Performance
Carbon Steel (Plain)	Poor	Very Poor	Poor	Acceptable (dry only)
Zinc Plated	Moderate	Low	Low	Moderate
Hot Dip Galvanized	Good	Good	Moderate	Good
SS304	Good	Moderate	Moderate	Good
SS316	Excellent	Excellent	High	Excellent

13.1 GCC Environmental Mapping

• Coastal UAE / Saudi Ports: SS316 or HDG
• Cement Plants (Dry): Medium carbon steel with coating
• Chemical Plants: SS316 or specialized coatings
• Mining: Alloy steel with protective coating

14. Inspection & Quality Assurance

Elevator bolts used in EPC projects must undergo systematic inspection and verification to ensure compliance with project specifications.

14.1 Dimensional Inspection

Parameters checked:

• Head diameter
• Head thickness
• Bolt length
• Thread dimensions

Tools used:

• Vernier calipers
• Micrometers
• Thread gauges

14.2 Mechanical Testing

Includes:

• Tensile testing
• Proof load testing
• Hardness testing

Purpose:

• Verify compliance with ISO 898-1
• Ensure material performance under load

14.3 Coating Thickness Testing

Methods:

• Magnetic thickness gauge
• Micrometer measurement

Ensures:

• Uniform corrosion protection
• Compliance with coating specifications

14.4 Thread Inspection

Performed using:

• Go / No-Go gauges

Ensures:

• Proper fit with nuts
• Reliable preload generation

14.5 Surface & Visual Inspection

Checks for:

• Cracks
• Surface defects
• Coating irregularities

14.6 Batch Traceability

Each production batch must be traceable through:

• Heat number
• Manufacturing lot number
• Inspection records

Supports:

• Quality audits
• Third-party inspection
• Project documentation

14.7 Third-Party Inspection Readiness

Elevator bolts for GCC projects must be suitable for inspection by:

• Independent inspection agencies (generic reference)

Requirements include:

• Inspection test plans (ITP)
• Material test certificates
• Dimensional reports
• Coating reports

14.8 EN 10204 3.1 Certification

Mandatory documentation includes:

• Chemical composition
• Mechanical properties
• Heat treatment records

Certified by:

• Manufacturer’s authorized inspection representative

14.9 Quality Control Integration

Quality assurance is integrated across:

• Raw material stage
• Manufacturing process
• Final inspection

Objective:

• Ensure consistency across large-volume supply
• Maintain compliance with EPC project requirements

15. Industries Served (Middle East Focus)

Elevator bolts are deployed across multiple heavy industries in the GCC where vertical bulk material transport is required. Their performance directly affects equipment uptime, maintenance cycles, and operational safety.

15.1 Cement Plants

Bucket elevators are extensively used in:

• Raw mill feed systems
• Clinker transport
• Cement grinding units

Fastening role:

• Secures buckets under high-temperature and abrasive conditions
• Maintains clamping force despite thermal expansion
• Prevents bucket detachment during continuous high-load operation

Engineering considerations:

• Use of medium carbon or alloy steel bolts
• Surface hardening for abrasion resistance
• Coated or galvanized finish depending on plant exposure

15.2 Mining & Aggregate Processing

Applications include:

• Crushed rock handling
• Sand and gravel transport
• Mineral processing systems

Fastening role:

• Withstands high impact loads from irregular material
• Resists shear forces due to heavy bucket loading
• Maintains integrity under vibration

Engineering considerations:

• High-strength alloy steel bolts (ISO 8.8 / 10.9)
• Reinforced head design for load distribution
• Regular inspection due to high wear rates

15.3 Fertilizer & Chemical Plants

Applications:

• Urea and phosphate transport
• Chemical powder handling

Fastening role:

• Maintains structural integrity under corrosive exposure
• Prevents loosening due to chemical interaction

Engineering considerations:

• Stainless steel (SS316) or coated bolts
• Anti-corrosion coatings for carbon steel variants
• Controlled preload to avoid stress corrosion cracking

15.4 Grain Handling Systems

Applications:

• Storage silos
• Processing facilities
• Feed mills

Fastening role:

• Provides smooth, low-profile fastening to prevent product accumulation
• Reduces risk of contamination

Engineering considerations:

• Low-profile head geometry
• Corrosion-resistant materials (SS304 or coated steel)
• Controlled tightening to prevent belt damage

15.5 Ports & Bulk Terminals

Applications:

• Cement export terminals
• Grain import/export systems
• Bulk cargo handling

Fastening role:

• Operates under continuous duty cycles
• Maintains integrity in marine environments

Engineering considerations:

• Hot dip galvanized or SS316 bolts
• Corrosion-resistant washers and nuts
• Maintenance planning for salt exposure

15.6 Power Plants (Coal & Ash Handling)

Applications:

• Coal feeding systems
• Fly ash and bottom ash handling

Fastening role:

• Handles abrasive ash materials
• Maintains performance under high temperature

Engineering considerations:

• Surface-hardened alloy steel bolts
• High-temperature-resistant coatings
• Periodic inspection due to abrasive wear

16. Export & GCC Supply Capability

India Fasteners operates as a manufacturer and exporter supporting EPC contractors and industrial clients across the GCC region.

16.1 Export Regions

Supply capability covers:

• Saudi Arabia
• United Arab Emirates
• Qatar
• Oman
• Kuwait
• Bahrain

Each region requires compliance with:

• Project-specific specifications
• International standards (DIN, ISO, EN)
• Third-party inspection protocols

16.2 Export Packaging

Packaging is designed to preserve product integrity during long-distance transport and storage.

Typical methods:

• Bulk packing in heavy-duty cartons
• Wooden palletization
• Moisture-resistant packaging for marine transport

Engineering considerations:

• Prevention of coating damage
• Avoidance of contamination
• Protection against corrosion during transit

16.3 Fastener Kitting

For EPC projects:

• Bolts, nuts, and washers supplied as matched sets
• Quantity aligned with installation drawings
• Segregated packaging for easy site identification

Advantages:

• Reduces installation errors
• Improves site efficiency
• Ensures compatibility of components

16.4 Batch Traceability

Each shipment includes:

• Heat number identification
• Batch numbers linked to production records
• Inspection documentation

Traceability supports:

• Quality audits
• Third-party inspections
• Project documentation compliance

16.5 Inspection Documentation

Typical export documentation includes:

• EN 10204 3.1 material certificates
• Dimensional inspection reports
• Mechanical test reports
• Coating thickness reports

Prepared in accordance with:

• EPC contractor requirements
• Consultant review standards

16.6 Container Loading Discipline

Loading procedures are structured to ensure:

• Weight distribution compliance
• Prevention of product damage
• Ease of unloading at project sites

Methods include:

• Palletized loading
• Container segregation by batch
• Labeling aligned with packing list

17. Procurement & Installation Engineering View

From a procurement and site engineering perspective, elevator bolts are evaluated based on installation reliability, maintainability, and compliance.

17.1 Bolt Installation Procedure

Standard installation sequence:

1. Align bucket holes with belt holes
2. Insert elevator bolts from belt side
3. Ensure head sits flush against belt surface
4. Install washer and nut on bucket side
5. Apply initial tightening
6. Perform final torque tightening

Critical requirement:

• Head must fully contact belt surface without tilt

17.2 Alignment with Belt Holes

Improper alignment may result in:

• Uneven load distribution
• Bolt bending stresses
• Premature failure

Engineering controls:

• Accurate hole punching in belts
• Proper jig alignment during installation

17.3 Nut Tightening Practices

Recommended methods:

• Use calibrated torque tools
• Apply uniform torque across all bolts
• Avoid impact tightening without control

Improper tightening leads to:

• Under-tightening → loosening
• Over-tightening → belt damage or bolt yielding

17.4 Locking Systems

To prevent loosening under vibration:

• Nylon insert lock nuts
• Double nutting
• Mechanical locking washers

Selection depends on:

• Operating vibration level
• Maintenance accessibility
• Project specifications

17.5 Maintenance Inspection Intervals

Inspection frequency depends on:

• Material handled
• Operating hours
• Environmental conditions

Typical checks include:

• Bolt tightness
• Head wear condition
• Corrosion status
• Bucket alignment

17.6 Replacement Guidelines

Replacement is required when:

• Head thickness reduces due to wear
• Corrosion affects structural integrity
• Threads are damaged
• Bolt loosening is recurrent

Best practice:

• Replace bolts in sets per bucket
• Use identical grade and specification

18. Custom Engineering Capabilities

Project-specific requirements often demand non-standard elevator bolt configurations.

18.1 Non-Standard Dimensions

Capabilities include:

• Custom head diameters
• Special bolt lengths
• Modified thread lengths

Used when:

• OEM designs differ from DIN standards
• Belt thickness varies
• Bucket design requires adjustment

18.2 High-Strength Variants

Manufacturing of:

• ISO 8.8 / 10.9 grade bolts
• Alloy steel configurations

Applications:

• High-capacity elevators
• Mining and clinker systems

18.3 Custom Coating Systems

Available options:

• Heavy-duty galvanizing
• Chemical-resistant coatings
• PTFE-based anti-corrosion systems

Selected based on:

• Environmental exposure
• Chemical interaction
• Maintenance intervals

18.4 Anti-Corrosion Engineering

Includes:

• Material selection (SS316 for marine)
• Coating optimization
• Surface preparation processes

Objective:

• Extend service life in aggressive environments

18.5 OEM-Specific Designs

Adaptation to:

• Conveyor manufacturer specifications
• Project-specific drawings
• Non-standard fastening systems

Includes:

• Custom neck configurations
• Special head profiles
• Integrated washer designs

18.6 Bulk Project Supply Capability

Production and supply aligned with:

• Large EPC project quantities
• Scheduled delivery timelines
• Batch consistency requirements

Includes:

• Controlled production planning
• Quality consistency across batches
• Documentation alignment with project milestones

Final Engineering Position

Elevator bolts in GCC bulk material handling systems are not treated as standard hardware components but as engineered fastening elements with direct impact on system reliability.

A compliant manufacturer must demonstrate:

• Understanding of load distribution in bucket elevators
• Capability to match material properties with operating conditions
• Control over manufacturing processes and dimensional accuracy
• Ability to meet international standards (DIN, ISO, EN)
• Readiness for third-party inspection and EPC documentation requirements
• Experience in supplying to high-demand environments such as cement plants, mining operations, and bulk terminals

From a consultant and EPC evaluation perspective, the suitability of a supplier is determined by:

• Technical documentation completeness
• Traceability and inspection readiness
• Consistency in mechanical and dimensional properties
• Alignment with GCC environmental and operational demands
